JSMSEMIDatasheet (PDF)

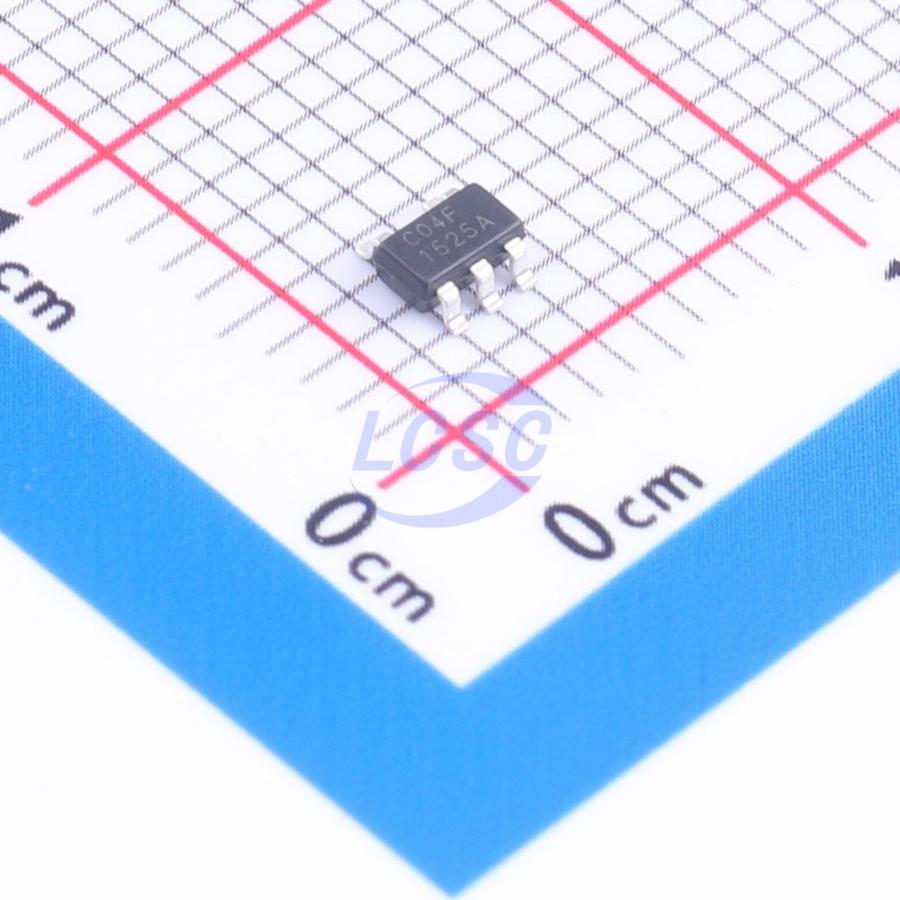

74HC1G04GV,125-JSM
2V~5.5V 3.1ns@5V,15pF 40uA SOT-753 Gates and Inverters RoHS
SOT-753ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74HC1G04GV,125-JSM
- Store part #
- C53436269
- Package / case
- SOT-753
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C53436269
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.87 | ₹98.70 |
| 100+ | ₹7.85 | ₹785.00 |
| 300+ | ₹6.84 | ₹2,052.00 |
| 3,000+ | ₹6.09 | ₹18,270.00 |
| 6,000+ | ₹5.48 | ₹32,880.00 |
| 9,000+ | ₹5.17 | ₹46,530.00 |
10 × ₹9.87
₹98.70
excl. GST
₹116.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G04GV,125-JSM
₹98.70 for 10 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 3.1ns@5V,15pF
- Output Logic Level - Low
- 100mV;440mV;550mV
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.48V;3.8V
- Quiescent Current(Iq)
- 40uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
74HC1G04GV,125 - JSM is a single inverter. The inputs are overvoltage tolerant, allowing these devices to be used as translators in mixed-voltage environments. The device features CMOS input switching levels with a supply voltage range of 2 V to 5.5 V.
Key features
- Wide supply voltage range: 2.0 V to 5.5 V
- Input overvoltage tolerance up to 5.5 V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200 mA
- Symmetrical output impedance
- Balanced propagation delay
- Input levels: CMOS levels
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000 V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
