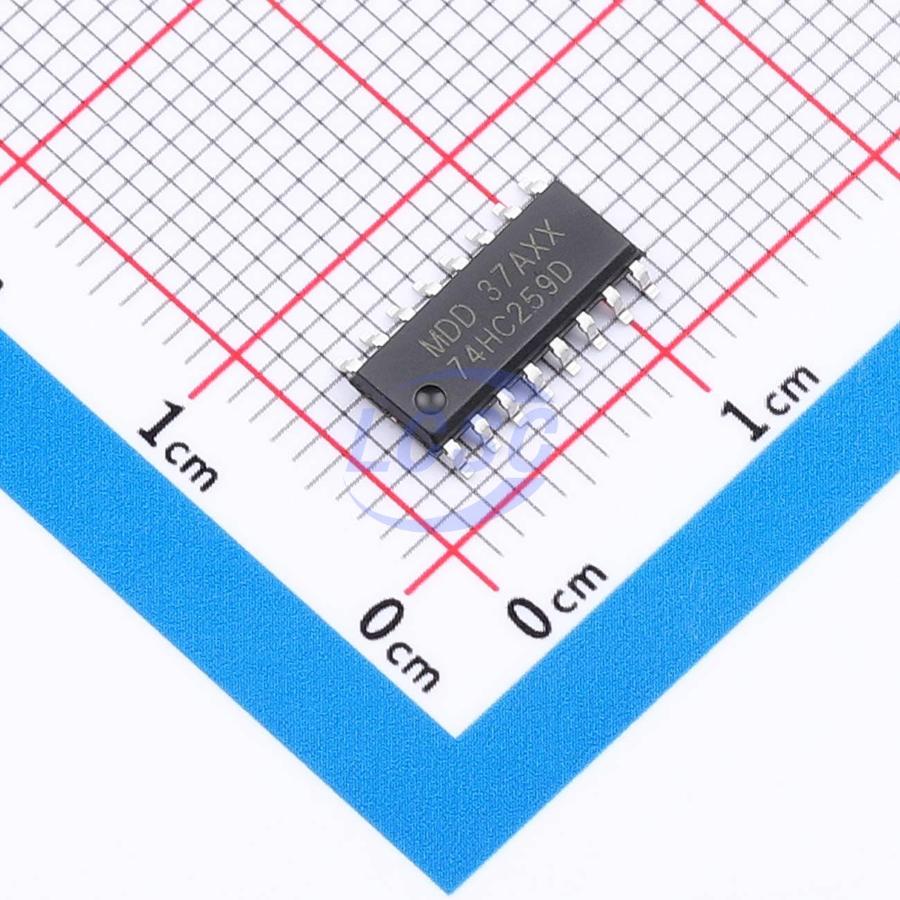

74HC259D

The 74HC259 and 74HCT259 are 8-bit addressable latches. The devices feature four operating modes. In the addressable latch mode, data at the D input is written to the latch addressed by inputs A0 to A3. The addressed latch follows the data input, while unaddressed latches retain their previous state. In the memory mode, all latches retain their previous state regardless of data or address inputs. In the 3-to-8 line decoding or demultiplexing mode, the addressed output follows the D input while all other outputs are held low. In the reset mode, all outputs are forced low regardless of data or address inputs. The inputs include clamping diodes, which allow the use of current-limiting resistors to interface inputs to voltages exceeding VCC.

Key features

• Wide supply voltage range: 2.0V to 6.0V
• Latch-up performance exceeds 250mA
• JEDEC compliant: JESD8C (2.7V to 3.6V) and JESD7A (2.0V to 6.0V)
• Combines demultiplexer and 8-bit latch functions
• Serial-to-parallel conversion capability
• Output available for each storage bit
• Random (addressable) data input
• Easy expansion
• Common reset input
• Usable as 3-line to 8-line active-HIGH decoder
• Input levels: CMOS for 74HC259; TTL for 74HCT259
• ESD protection: HBM per ANSI/ESDA/JEDEC JS-001 Class 2, exceeds 3500V; CDM per ANSI/ESDA/JEDEC JS-002 Class C3, exceeds 2000V
• Multiple package options
• Operating temperature range: -40°C to +85°C and -40°C to +125°C
