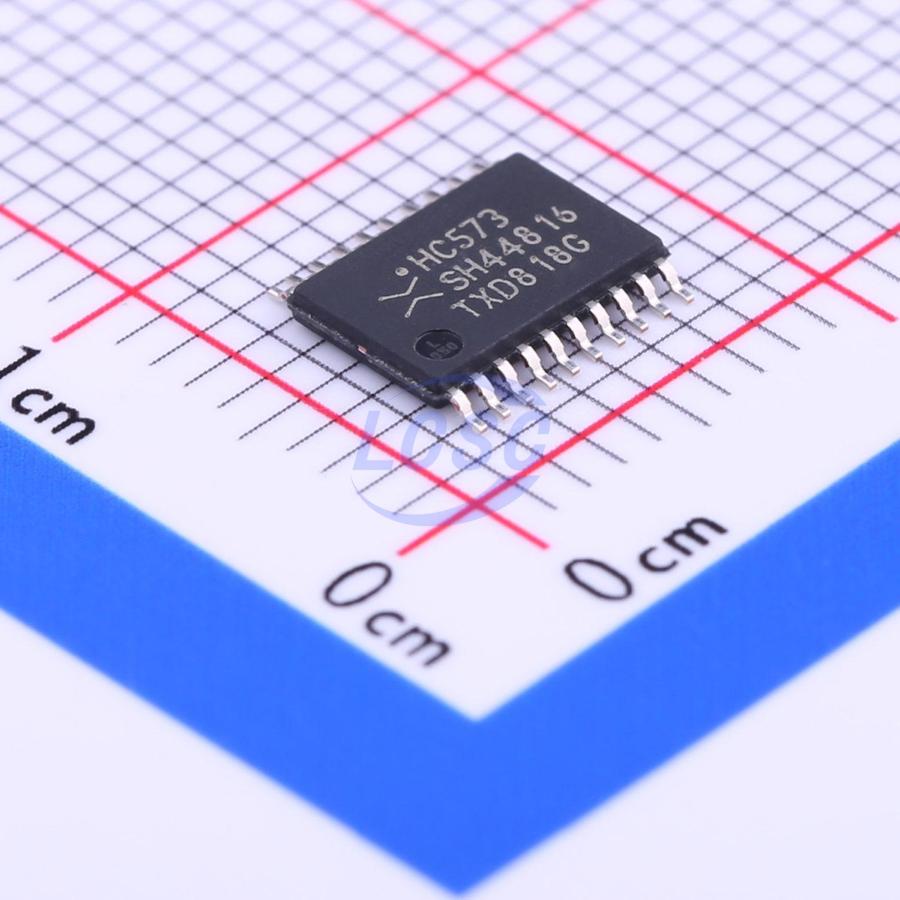

74HC573PW,118
D Latch 2V~6V 8 14ns TSSOP-20 Latches RoHS
Octal D-type transparent latch; 3-state
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
77,995 in stock
#C5944
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.75 | ₹143.75 |
| 50+ | ₹22.36 | ₹1,118.00 |
| 150+ | ₹19.24 | ₹2,886.00 |
| 500+ | ₹16.46 | ₹8,230.00 |
| 2,500+ | ₹15.20 | ₹38,000.00 |
| 5,000+ | ₹14.75 | ₹73,750.00 |
5 × ₹28.75
₹143.75
excl. GST
₹169.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC573PW,118
₹143.75 for 5 + GST
Specifications
- Quiescent Current
- 8uA
- Series
- 74HC
- Logic Type
- D Latch
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 7.8mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Tri-State
- Setup Time
- 10ns
- Number of Gates
- 8
- Current - Output High(IOH)
- 7.8mA
- Hold Time
- 5ns
- Propagation Delay
- 14ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.326 g
Overview
The 74HC573; 74HCT573 is an 8-bit D-type transparent latch with 3-state outputs. The device features latch enable (LE) and output enable (OE) inputs. When LE is HIGH, data at the inputs enter the latches. In this condition the latches are transparent, a latch output will change each time its corresponding D-input changes. When LE is LOW the latches store the information that was present at the inputs a set-up time preceding the HIGH-to-LOW transition of LE. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the latches. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Input levels:
- For 74HC573: CMOS level
- For 74HCT573: TTL level
- Inputs and outputs on opposite sides of package allowing easy interface with microprocessors
- Useful as input or output port for microprocessors and microcomputers
- 3-state non-inverting outputs for bus-oriented applications
- Common 3-state output enable input
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ74HC573BGN#C52145554JSCJ · TSSOP-20 | JSCJ | TSSOP-20 | 175 | ₹13.24 · 175 in stock | View |
 | SN74HC573PW(LX)#C22374071lingxingic · TSSOP-20 | lingxingic | TSSOP-20 | 5,465 | ₹18.92 · 5,465 in stock | View |
| 74HC573MT/TR#C46061298HGSEMI · TSSOP-20 | HGSEMI | TSSOP-20 | 2,470 | ₹21.99 · 2,470 in stock | View | |
 | CJ74HC373BGN#C52145542JSCJ · TSSOP-20 | JSCJ | TSSOP-20 | 3,895 | ₹23.40 · 3,895 in stock | View |
 | AiP74HC373TA20.TR#C5162252Wuxi I-core Elec · TSSOP-20 | Wuxi I-core Elec | TSSOP-20 | 55 | ₹19.67 · 55 in stock | View |
