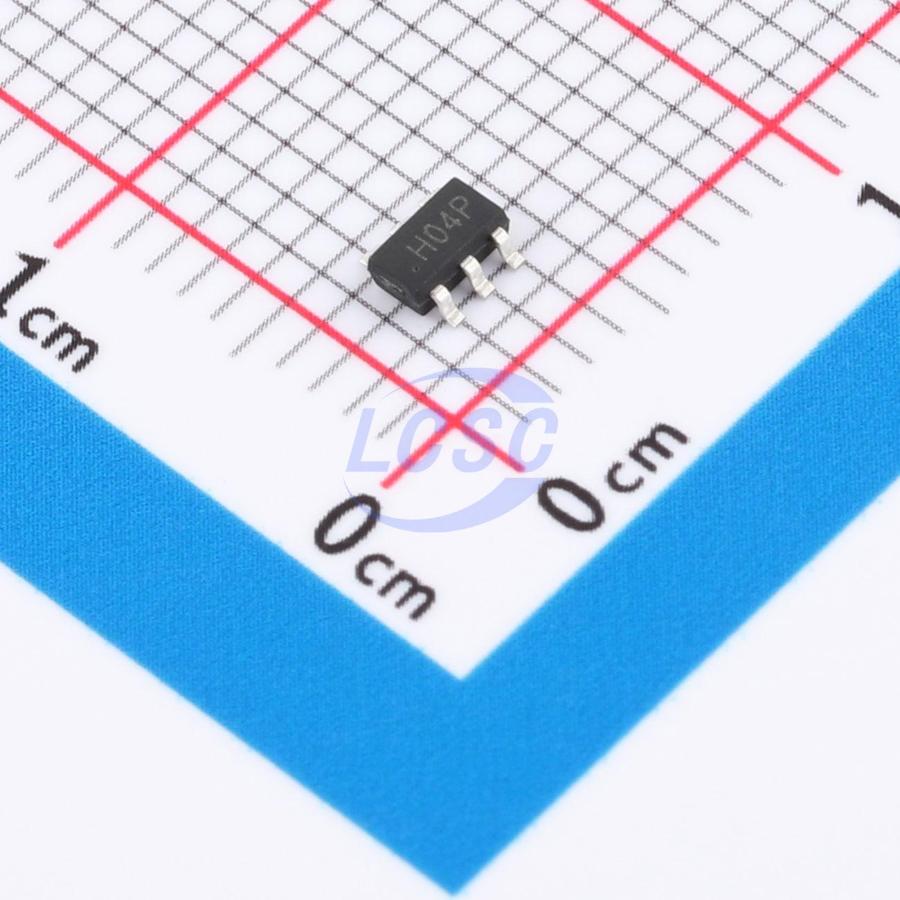

74HC2G04GV
2V~6V 6ns@6V,50pF 1uA 2 SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC2G04GV
- Store part #
- C52205108
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,280 in stock
#C52205108
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.11 | ₹81.10 |
| 100+ | ₹6.39 | ₹639.00 |
| 300+ | ₹5.54 | ₹1,662.00 |
| 3,000+ | ₹4.90 | ₹14,700.00 |
| 6,000+ | ₹4.38 | ₹26,280.00 |
| 9,000+ | ₹4.13 | ₹37,170.00 |
10 × ₹8.11
₹81.10
excl. GST
₹95.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC2G04GV
₹81.10 for 10 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 6ns@6V,50pF
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V;4.18V;5.68V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
74HC2G04 is a dual inverter. The inputs include clamping diodes, allowing the use of current-limiting resistors to interface the inputs to voltages above VCC.
Applications
- Audio/Video receivers
- Audio docking stations
- IP phones
- Embedded PCs
- PDAs
- Power supplies
Key features
- Operating voltage range: 2.0~6.0V
- High noise immunity
- Balanced propagation delay
- Low power consumption, maximum ICC of 10μA
- ESD protection exceeding JESD 22 standard
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
