TECH PUBLICDatasheet (PDF)

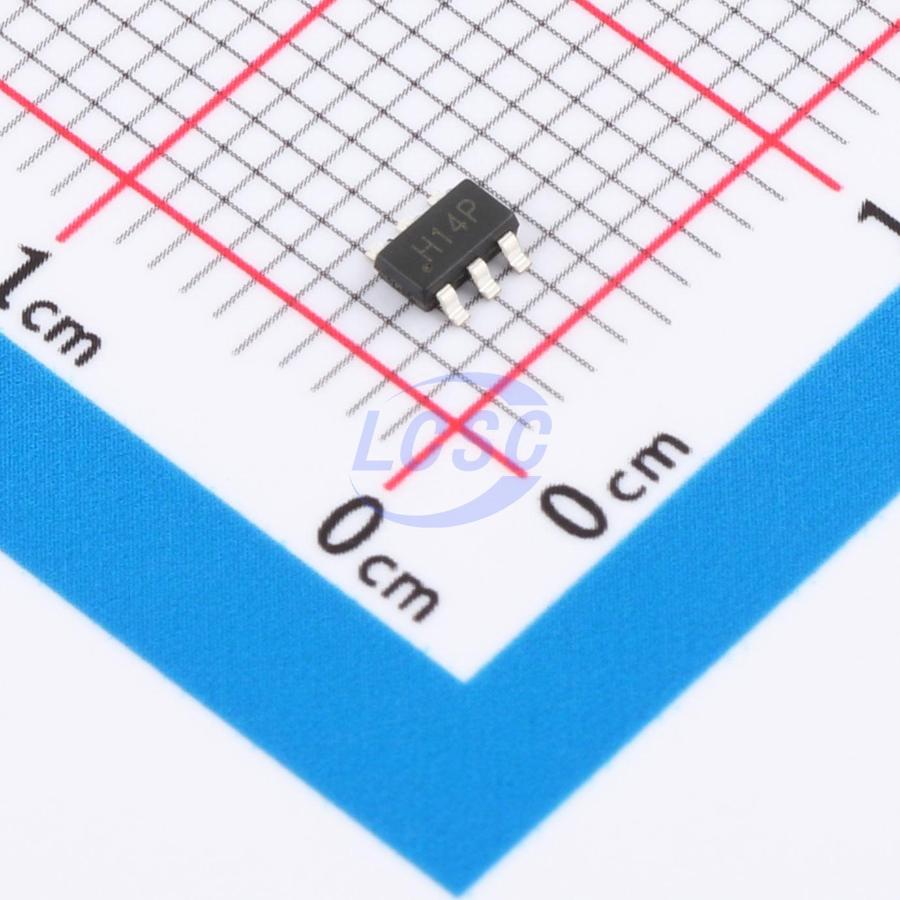

74HC2G14GV
Schmitt trigger 2V~6V 6ns@6V,50pF 1uA 2 SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC2G14GV
- Store part #
- C52205110
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,800 in stock
#C52205110
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.92 | ₹79.20 |
| 100+ | ₹6.23 | ₹623.00 |
| 300+ | ₹5.38 | ₹1,614.00 |
| 3,000+ | ₹4.75 | ₹14,250.00 |
| 6,000+ | ₹4.25 | ₹25,500.00 |
| 9,000+ | ₹4.00 | ₹36,000.00 |
10 × ₹7.92
₹79.20
excl. GST
₹93.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC2G14GV
₹79.20 for 10 + GST
Specifications
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 6ns@6V,50pF
- Output Logic Level - Low
- 100mV
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;4.18V;5.68V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
74HC2G14 is a dual inverter. Its inputs include clamping diodes, allowing input interfacing to voltages exceeding VCC using current-limiting resistors.
Applications
- AV receivers
- Audio docking stations
- IP phones
- Embedded PCs
- Personal digital assistants
- Power supplies
Key features
- Operating voltage range: 2.0~6.0V
- High noise immunity
- Balanced propagation delay
- Low power consumption, maximum quiescent current 10μA
- ESD protection exceeds JESD 22 standard
- Human Body Model 2000V
- Machine Model 200V
- Charged Device Model 1000V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC2G14S6#C42460205TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,735 | ₹12.52 · 1,735 in stock | View |
