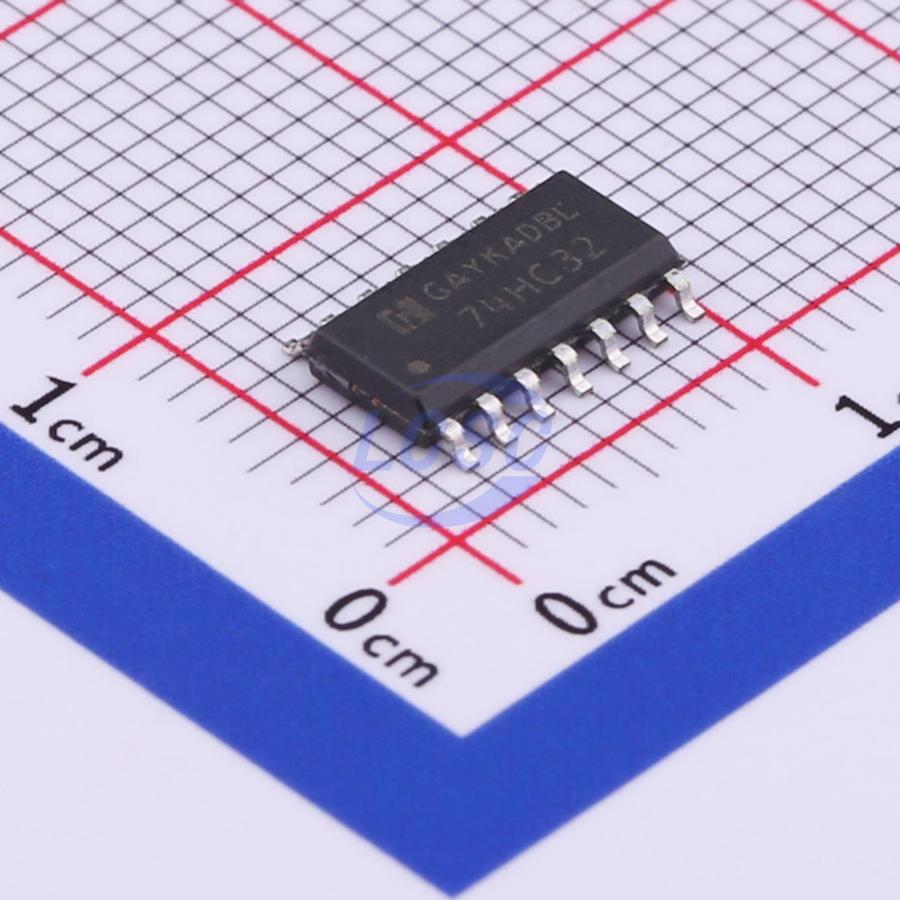

HGSEMI

74HC32M/TR

TTL-compatible CMOS 2V~6V 4 OR Gate 15ns@6V,50pF SOP-14 Flip Flops

SOP-14RoHSActive

4-channel 2-input OR gate

Manufacturer: HGSEMI
Manufacturer part #: 74HC32M/TR
Store part #: C507181
Package / case: SOP-14
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,720 in stock

#C507181

Stock & price checked 37 h ago

Quantity	Unit price	Pack price
5+	₹15.77	₹78.85
50+	₹12.63	₹631.50
150+	₹11.07	₹1,660.50
500+	₹9.90	₹4,950.00
2,500+	₹8.96	₹22,400.00
5,000+	₹8.49	₹42,450.00

Quantity (min 5, multiples of 5)

5 × ₹15.77

₹78.85

excl. GST

₹93.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74HC32M/TR

₹78.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input type: TTL-compatible CMOS
Voltage - Supply: 2V~6V
Number of Channels: 4
Operating Temperature: -40℃~+85℃
Series: 74HC
Output Logic Level - Low: 0V;150mV;160mV
Output Logic Level - High: 2V;4.5V;6V;4.32V;5.81V
Current - Output High(IOH): -5.2mA
Current - Output Low(IOL): 5.2mA
Quiescent Current: 2uA
Logic Type: OR Gate
Propagation Delay: 15ns@6V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.304 g

Overview

The 74HC32 is a high-speed silicon-gate CMOS circuit, pin-compatible with Low-power Schottky TTL (LSTTL) series, implementing quad 2-input OR gate functionality. The device conforms to JEDEC standard no.7A, with a wide operating voltage range of 2.0V to 6.0V, featuring symmetrical output impedance, low noise, low power consumption, and consistent propagation delay. It provides ESD protection: Human Body Model (EIA/JESD22-A114-A) exceeding 2000V, and Machine Model (EIA/JESD22-A115-A) exceeding 200V. Operating temperature range: -40 ~ 85℃. Available packages: DIP-14, SOP-14, and TSSOP-14.

Key features

Wide supply voltage range: 2.0V - 6.0V
Symmetrical output impedance
Low noise
Low power consumption
Stable propagation delay
ESD protection: Human Body Model (EIA/JESD22-A114-A) exceeds 2000V; Machine Model (EIA/JESD22-A115-A) exceeds 200V
Operating temperature range: -40 ~ 85℃
Package: DIP-14/SOP-14/TSSOP-14
