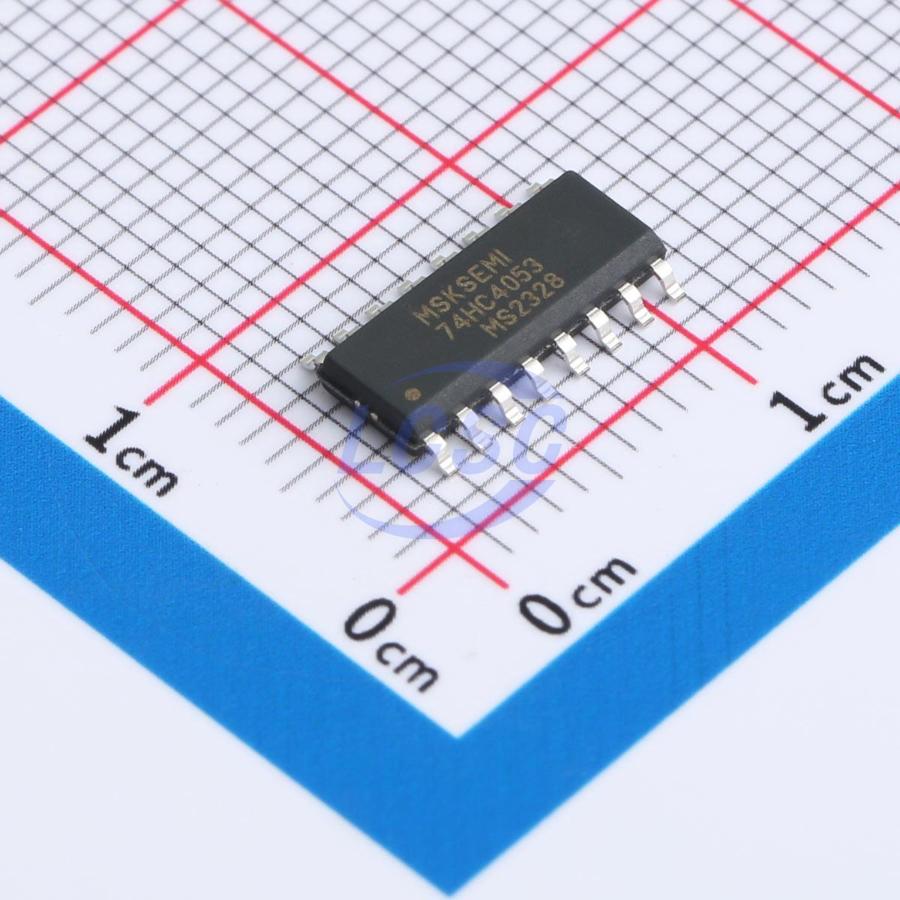

74HC4053-MS

The 74HC4053-MS is a 3-channel, 2-to-1 analog multiplexer designed with advanced CMOS technology, configured as a single-pole double-throw (SPDT) analog switch. It features three independent channel control inputs A, B, C and one enable input INH. Each channel control input (A, B, or C) independently selects one of the two channels in its respective switch to turn on while turning the other off.

Applications

• Analog and digital multiplexing and demultiplexing
• Logic level translation for digital address signals
• Multiplexing and demultiplexing

Key features

• Low input current: IIN ≤1uA, 4V IN=VDD-VSS=15V, Ta=25°C
• Low quiescent power consumption: IDD = 0.2uA (typ) 4VDD-VSS=15V, Ta=25°C
• Low on-resistance: 90Ω (typ) @VDD-VSS=VDD-VEE=15V, Ta=25°C
• Channel leakage current: ±100pA (typ) 4VDD-VEE=15V
• Wide supply voltage VDD-VSS range: 3V~15V
• Break-before-make switching eliminates channel overlap turn-on
• SPDT analog switch configuration
