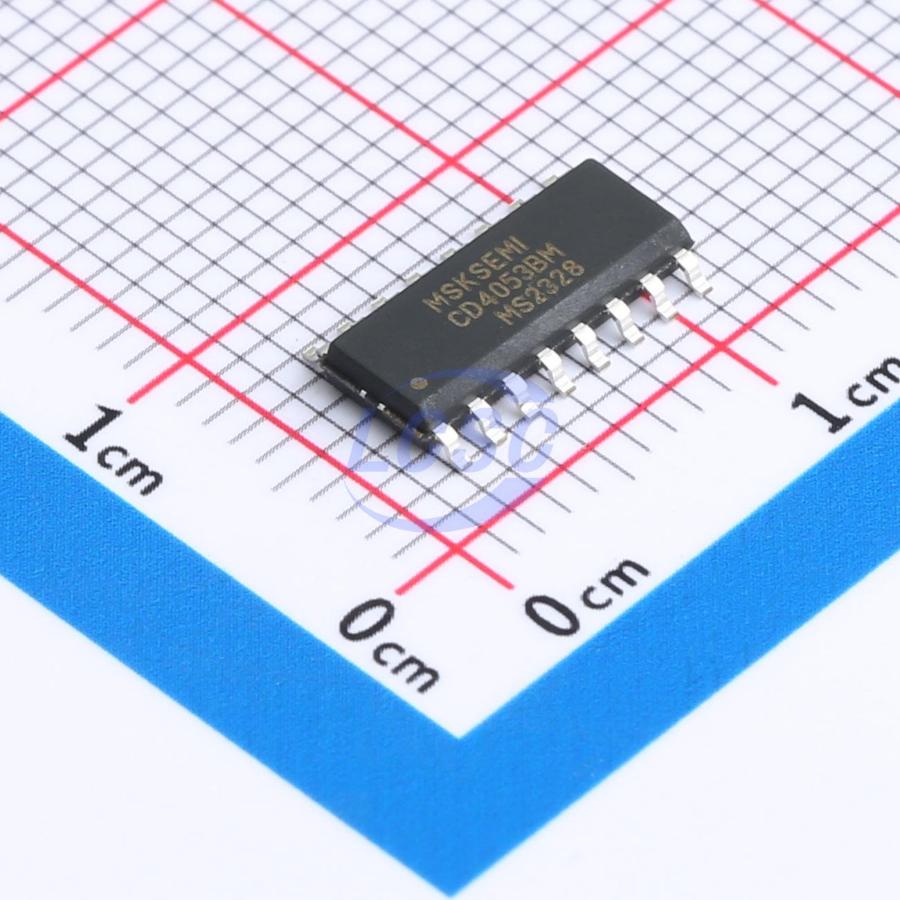

CD4053BM-MS

The CD4053B is a 3-channel, 2-to-1 analog multiplexer designed using advanced CMOS technology, configured as a single-pole double-throw (SPDT) analog switch. It features three independent channel control inputs A, B, C and one enable input INH. Each channel control input signal A, B, C independently selects one of the two channels in its respective switch to turn on while the other channel turns off.

Applications

• Analog and digital multiplexing and demultiplexing
• Logic level translation for digital address signals
• Multiplexing and demultiplexing

Key features

• Low input current: IIN ≤1uA, 4V IN=VDD-VSS=15V, Ta=25°C
• Low quiescent power consumption: IDD = 0.2uA (typ) 4VDD-VSS=15V, Ta=25°C
• Low on-resistance: 90Ω (typ) @VDD-VSS=VDD-VEE=15V, Ta=25℃
• Channel leakage current: ±100pA (typ) 4VDD-VEE=15V
• Wide supply voltage VDD-VSS range: 3V~15V
• Break-before-make switching eliminates channel overlap
• SPDT analog switch configuration
• Package options: DIP-16, SOP-16, TSOP-16
