Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,925 in stock
#C52437590
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.49 | ₹182.45 |
| 50+ | ₹28.72 | ₹1,436.00 |
| 150+ | ₹25.39 | ₹3,808.50 |
| 500+ | ₹21.23 | ₹10,615.00 |
| 2,000+ | ₹19.38 | ₹38,760.00 |
| 4,000+ | ₹18.27 | ₹73,080.00 |
5 × ₹36.49
₹182.45
excl. GST
₹215.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel

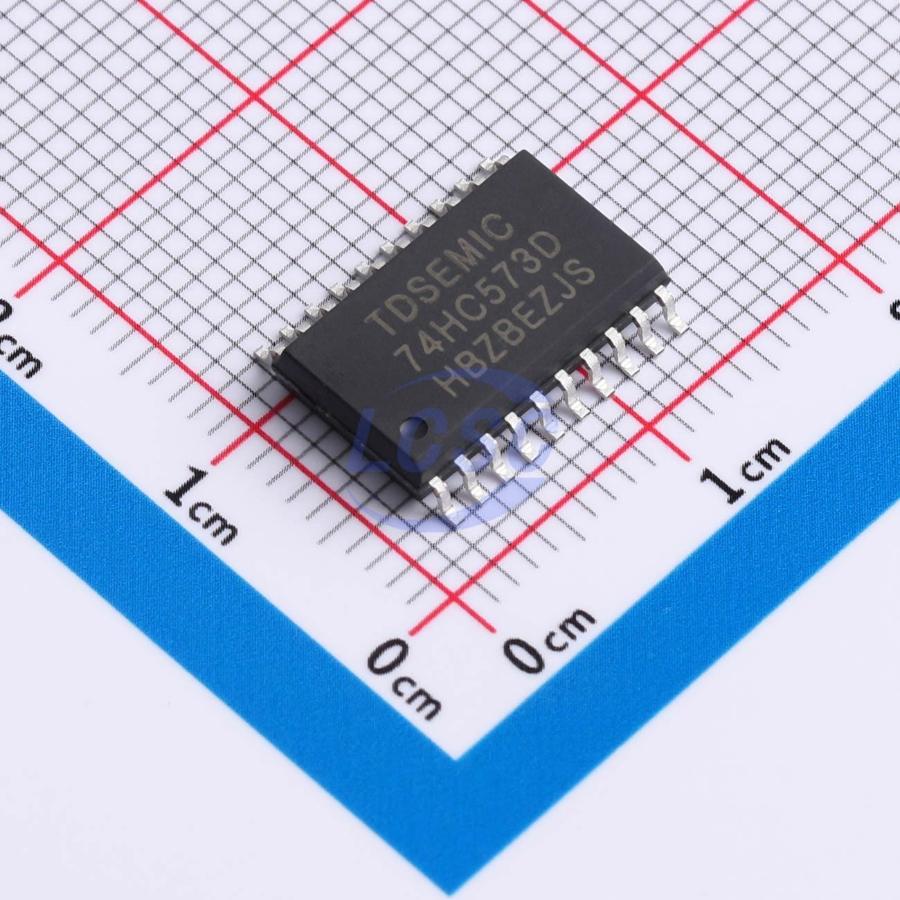

74HC573D-TD
₹182.45 for 5 + GST
Specifications
- Quiescent Current
- 8uA
- Series
- 74HC
- Logic Type
- D Latch
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 7.8mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Tri-State
- Current - Output High(IOH)
- 7.8mA
- Number of Gates
- 8
- Hold Time
- 5ns
- Propagation Delay
- 43ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.813 g
Overview
74HC573 is an octal transparent D-type latch with 3-state outputs, featuring 8 channels.
Key features
- Operating voltage range: 2 V to 6 V
- Maximum propagation delay: 57 ns at 4.5 V
- Typical conditions, VCC = 4.5 V, TA = 25°C: VOL < 0.17 V
- Typical conditions, VCC = 4.5 V, TA = 25°C: VOH > 4.3 V
- Latch-up performance ≤ 250 mA
- ESD protection:
- HBM: compliant with ANSI/ESDA/JEDEC JS-001 2023, exceeds 2500 V
- CDM: compliant with ANSI/ESDA/JEDEC JS-002 2022, exceeds 1500 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS573-TD#C52437592TDSEMIC · SOP-20 | TDSEMIC | SOP-20 | 986 | ₹64.62 · 986 in stock | View |
