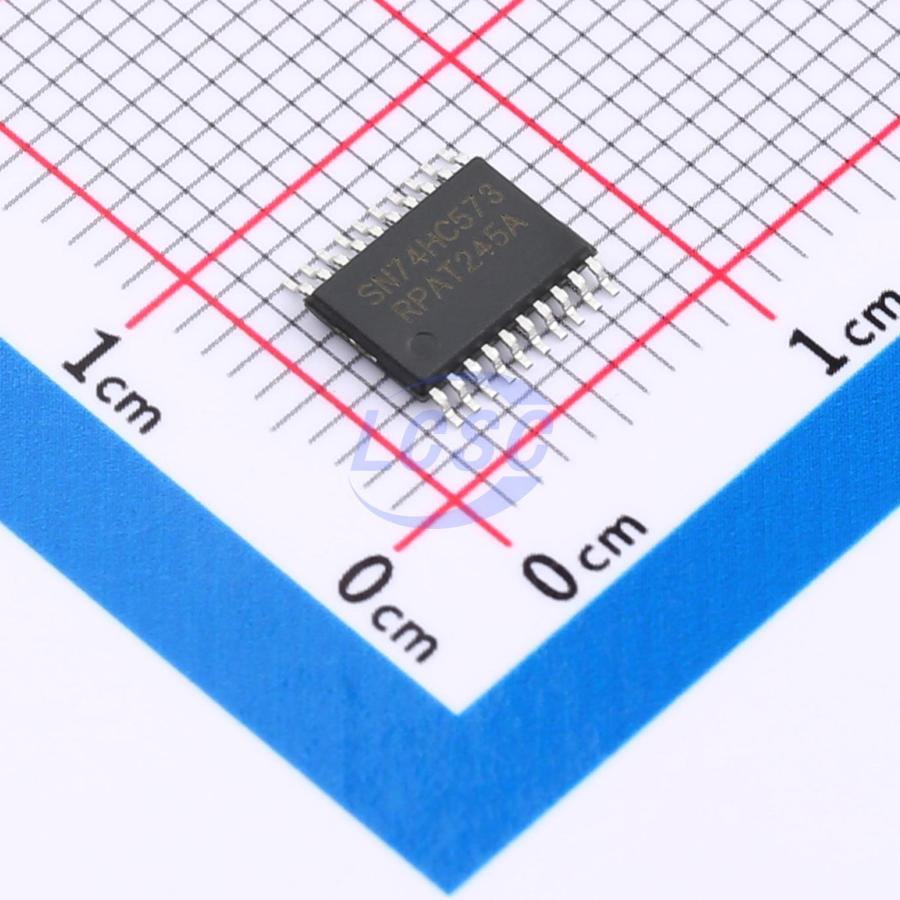

SN74HC573PW(LX)
D Latch 2V~6V 8 26ns TSSOP-20 Latches
8-bit D-type latch with three-state control
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC573PW(LX)
- Store part #
- C22374071
- Package / case
- TSSOP-20
- Category
- Latches
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,465 in stock
#C22374071
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.76 | ₹113.80 |
| 50+ | ₹17.95 | ₹897.50 |
| 150+ | ₹15.89 | ₹2,383.50 |
| 500+ | ₹13.32 | ₹6,660.00 |
| 2,500+ | ₹11.85 | ₹29,625.00 |
| 4,000+ | ₹11.17 | ₹44,680.00 |
5 × ₹22.76
₹113.80
excl. GST
₹134.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC573PW(LX)
₹113.80 for 5 + GST
Specifications
- Quiescent Current
- 8uA
- Logic Type
- D Latch
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 7.8mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Tri-State
- Setup Time
- 10ns
- Number of Gates
- 8
- Current - Output High(IOH)
- 7.8mA
- Hold Time
- 5ns
- Propagation Delay
- 26ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.198 g
Overview
The SN74HC/HCT573 is an 8-bit D-type latch with 3-state outputs. The device features a latch enable (LE) and an output enable (OE). When LE is high, data at the inputs enters the latches. In this condition, the latches are transparent — each latch output changes whenever its corresponding D input changes. When LE is low, the latches store the input information that was present one setup time before the falling edge of LE. A high level on OE forces the outputs into a high-impedance state. Operation of the OE input does not affect the state of the latches. The inputs are clamped with diodes to allow the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Input levels: SN74HC573: CMOS; SN74HCT573: TTL
- Inputs and outputs on opposite sides of the package for easy microprocessor interfacing
- 3-state non-inverting outputs for bus applications
- Common 3-state output enable input
- Operating temperature range: -40°C ~ +125°C
- Package: DIP20/SOP20/TSSOP20/SOP(M)20
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC373PW(LX)#C22374059lingxingic · TSSOP-20 | lingxingic | TSSOP-20 | 2,665 | ₹14.21 · 2,665 in stock | View |
