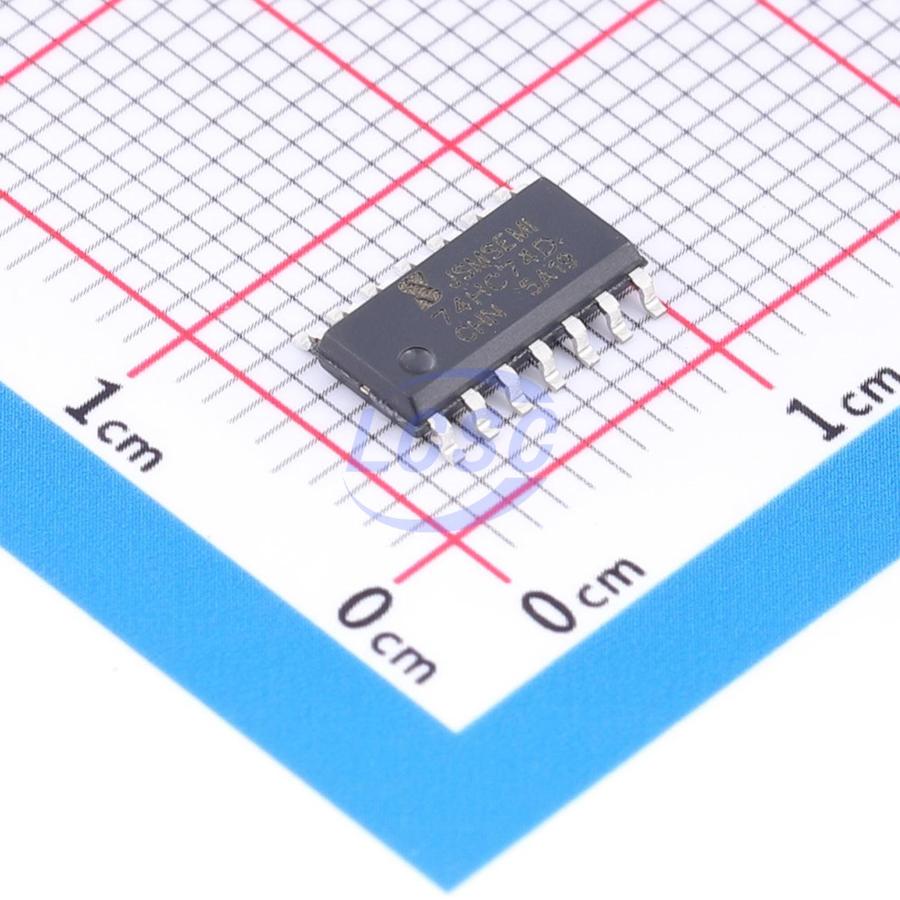

74HC74D,653-JSM
2V~6V 1 2 45ns@6V SOP-14 Flip Flops RoHS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74HC74D,653-JSM
- Store part #
- C53436278
- Package / case
- SOP-14
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,815 in stock
#C53436278
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.35 | ₹71.75 |
| 50+ | ₹11.25 | ₹562.50 |
| 150+ | ₹9.70 | ₹1,455.00 |
| 500+ | ₹8.53 | ₹4,265.00 |
| 2,500+ | ₹7.92 | ₹19,800.00 |
| 5,000+ | ₹7.45 | ₹37,250.00 |
5 × ₹14.35
₹71.75
excl. GST
₹84.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC74D,653-JSM
₹71.75 for 5 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+125℃
- Series
- 74HC
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 2
- Quiescent Current
- 80uA
- Setup Time
- 2ns
- Propagation Delay
- 45ns@6V
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.178 g
Overview
The 74HC/HCT74 are dual positive-edge-triggered D-type flip-flops. They feature individual data (nD), clock (nCP), set (nSD), and reset (nRD) inputs, along with complementary nQ and nQ outputs. Data at the nD input that meets the setup and hold time requirements relative to the low-to-high clock transition is stored in the flip-flop and appears at the nQ output. Input clamping diodes are provided, enabling the use of current-limiting resistors to interface inputs to voltages exceeding ΔVCC.
Key features
- Input levels: CMOS for 74HC74D, TTL for 74HCT74D
- Symmetric output impedance
- Low power consumption
- Balanced propagation delay
- Operating temperature range: -40°C ~ +125°C
- Package types: DIP14/SOP14/TSSOP14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC74DR-JSM#C53436300JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | 3,210 | ₹12.54 · 3,210 in stock | View |
