GRDatasheet (PDF)

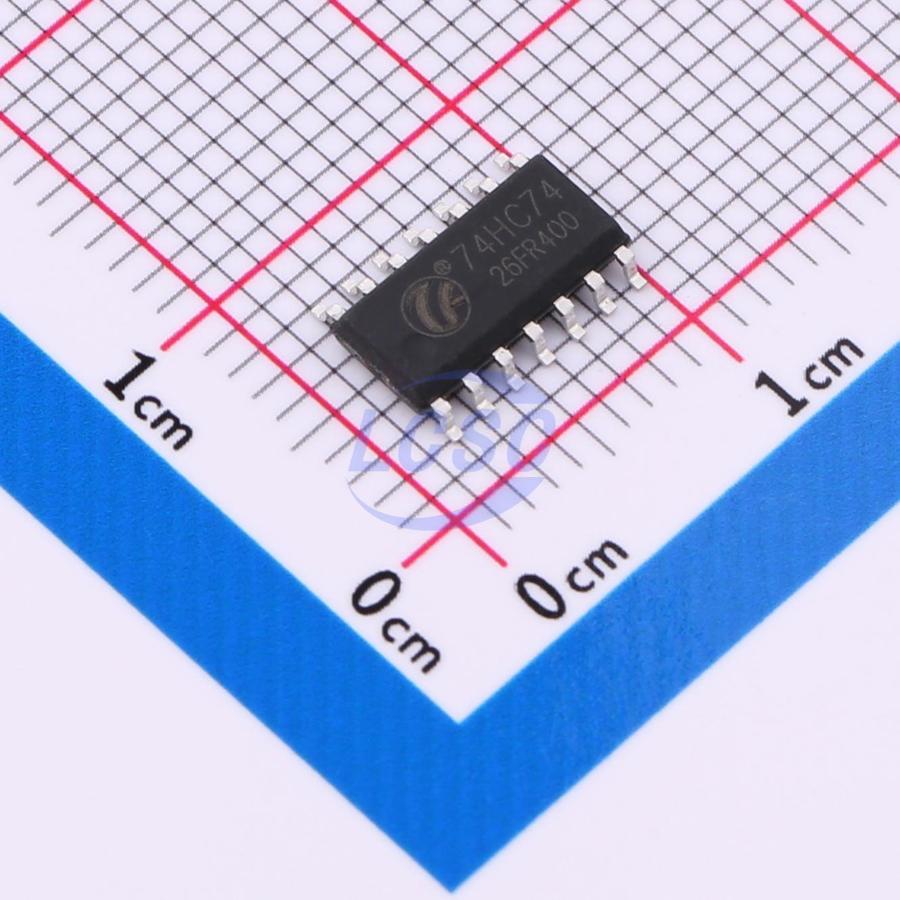

74HC74NS14ARDQ
2V~6V 1 2 SOP-14 Flip Flops
SOP-14RoHSActive
Dual D-Type Positive-Edge-Triggered Flip-Flops With Clear and Preset
- Manufacturer
- GR
- Manufacturer part #
- 74HC74NS14ARDQ
- Store part #
- C41414573
- Package / case
- SOP-14
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,145 in stock
#C41414573
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.34 | ₹61.70 |
| 50+ | ₹9.76 | ₹488.00 |
| 150+ | ₹8.47 | ₹1,270.50 |
| 500+ | ₹7.50 | ₹3,750.00 |
| 2,500+ | ₹6.72 | ₹16,800.00 |
| 4,000+ | ₹6.34 | ₹25,360.00 |
5 × ₹12.34
₹61.70
excl. GST
₹72.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
74HC74NS14ARDQ
₹61.70 for 5 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+85℃
- Series
- 74HC Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 2
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
- Setup Time
- 4ns
- Quiescent Current
- 10uA
- Hold Time
- 1ns
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.326 g
Overview
The 74HC74 series devices contain two independent D-type positive-edge-triggered flipflops with asynchronous preset and clear pins for each.
Key features
- Buffered inputs
- Wide operating voltage range of 2V to 6V
- Wide operating temperature range: -40 °C to +85 °C
- Supports fanout up to 10 LSTTL loads
- Significant power reduction compared to LSTTL logic ICs
