NexperiaDatasheet (PDF)

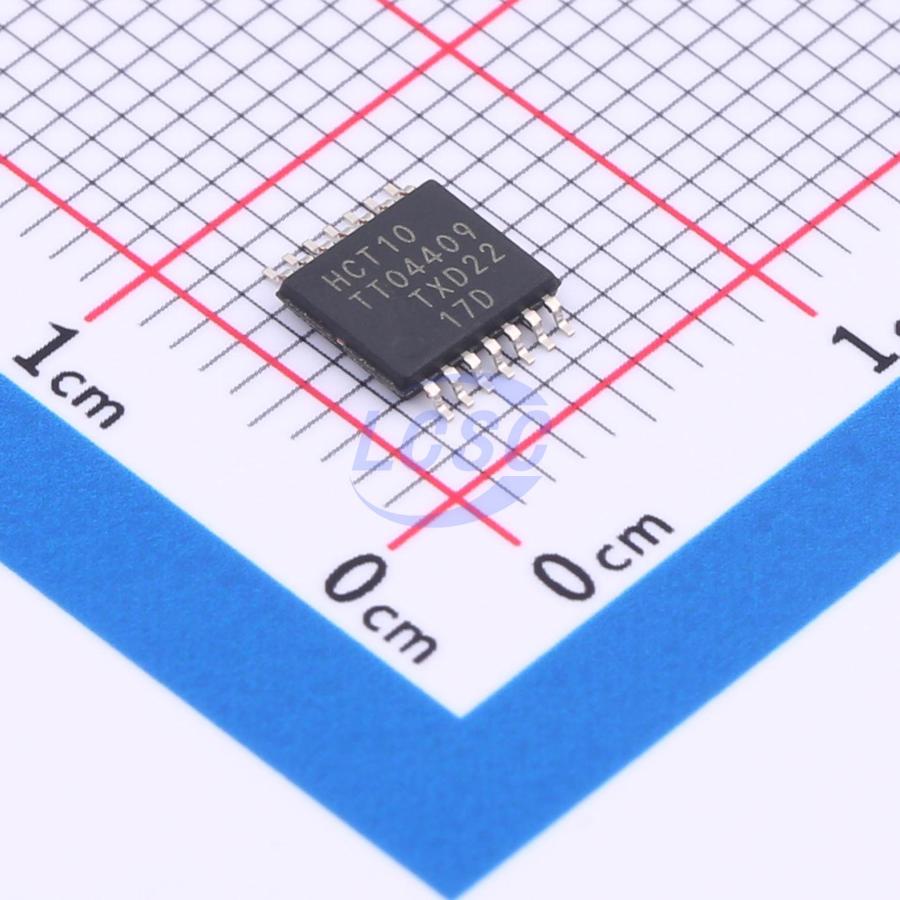

74HCT10PW,118
TTL-compatible CMOS 4.5V~5.5V 24ns@4.5V,50pF 2uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Triple 3-input NAND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT10PW,118
- Store part #
- C547241
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,865 in stock
#C547241
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.22 | ₹156.10 |
| 50+ | ₹27.52 | ₹1,376.00 |
| 150+ | ₹25.92 | ₹3,888.00 |
| 500+ | ₹23.93 | ₹11,965.00 |
| 2,500+ | ₹23.06 | ₹57,650.00 |
| 5,000+ | ₹22.53 | ₹1,12,650.00 |
5 × ₹31.22
₹156.10
excl. GST
₹184.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT10PW,118
₹156.10 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 24ns@4.5V,50pF
- Features
- Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 4.4V;3.7V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 3;3
- Current - Output High(IOH)
- 4mA
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Overview
The 74HC10; 74HCT10 is a triple 3-input NAND gate. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Logic gate circuits
- Digital circuit design
Key features
- Complies with JEDEC standard JESD7A
- Input levels: For 74HC10: CMOS level; For 74HCT10: TTL level
- Complies with JEDEC standard no. 7A
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74HCT10PW-Q100J#C547242Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 2,575 | ₹41.79 · 2,575 in stock | View | |
| SN74ACT10QPWRG4Q1#C2877121TI · TSSOP-14 | TI | TSSOP-14 | 20 | ₹178.54 · 20 in stock | View | |
| 74HCT10PW-Q100118#C4472815Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | On request | ₹21.53 · 0 in stock | View | |
| 74HCT10PW,112#C547240Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | On request | ₹12.71 · 0 in stock | View | |
 | SN74ACT10PWR#C2869026TI · TSSOP-14 | TI | TSSOP-14 | On request | ₹61.98 · 0 in stock | View |
