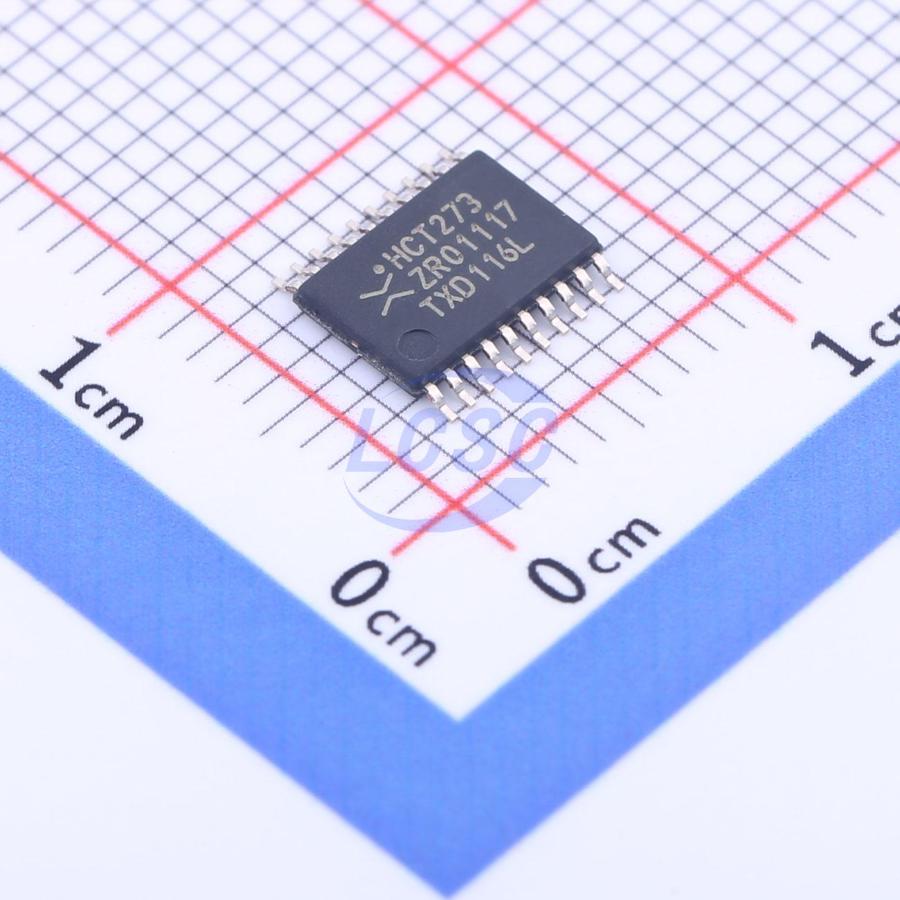

74HCT273PW,118
4.5V~5.5V 8 1 30ns@4.5V,50pF TSSOP-20 Flip Flops RoHS
Octal D-type flip-flop with reset; positive-edge trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT273PW,118
- Store part #
- C513294
- Package / case
- TSSOP-20
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,765 in stock
#C513294
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.03 | ₹220.15 |
| 50+ | ₹34.66 | ₹1,733.00 |
| 150+ | ₹30.64 | ₹4,596.00 |
| 500+ | ₹25.64 | ₹12,820.00 |
| 2,500+ | ₹23.40 | ₹58,500.00 |
| 5,000+ | ₹22.07 | ₹1,10,350.00 |
5 × ₹44.03
₹220.15
excl. GST
₹259.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT273PW,118
₹220.15 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Number of Bits per Element
- 8
- Output Type
- Push-Pull
- Operating Temperature
- -40℃~+125℃
- Series
- 74HCT Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 1
- Current - Output High(IOH)
- 4mA
- Current - Output Low(IOL)
- 5.2mA
- Setup Time
- 12ns
- Quiescent Current
- 8uA
- Hold Time
- 3ns
- Propagation Delay
- 30ns@4.5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.216 g
Overview
The 74HC273; 74HCT273 is an octal positive-edge triggered D-type flip-flop. The device features clock (CP) and master reset (MR) inputs. The outputs Qn will assume the state of their corresponding Dn inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition. A LOW on MR forces the outputs LOW independently of clock and data inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- Input levels: For 74HC273: CMOS level; For 74HCT273: TTL level
- Common clock and master reset
- Eight positive edge-triggered D-type flip-flops
- ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
