NexperiaDatasheet (PDF)

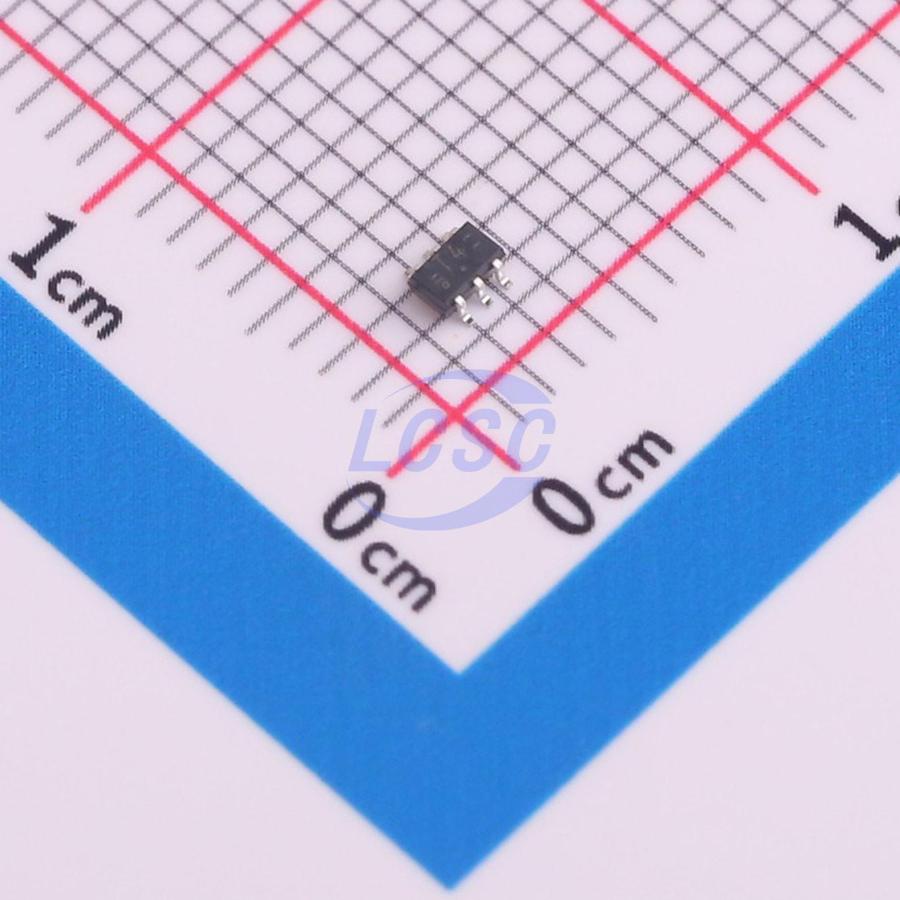

74HCT2G04GW,125
4.5V~5.5V 18ns@4.5V,50pF 1uA 2 TSSOP-6-1.3mm Gates and Inverters RoHS
TSSOP-6-1.3mmROHS3 CompliantActive
Dual inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT2G04GW,125
- Store part #
- C547553
- Package / case
- TSSOP-6-1.3mm
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,225 in stock
#C547553
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.97 | ₹124.85 |
| 50+ | ₹19.50 | ₹975.00 |
| 150+ | ₹17.16 | ₹2,574.00 |
| 500+ | ₹14.24 | ₹7,120.00 |
| 3,000+ | ₹12.94 | ₹38,820.00 |
| 6,000+ | ₹12.16 | ₹72,960.00 |
5 × ₹24.97
₹124.85
excl. GST
₹147.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HCT2G04GW,125
₹124.85 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 260mV
- Propagation Delay
- 18ns@4.5V,50pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Output Logic Level - High
- 4.4V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The 74HC2G04; 74HCT2G04 is a dual inverter. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- Input levels: For 74HC2G04: CMOS level For 74HCT2G04: TTL level
- High noise immunity
- CMOS low power dissipation
- Balanced propagation delays
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
