74HCT3G14DP,125
Schmitt trigger 4.5V~5.5V 48ns@4.5V,50pF 20uA 3 TSSOP-8-3.0mm Gates and Inverters RoHS
TSSOP-8-3.0mmROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT3G14DP,125
- Store part #
- C547660
- Package / case
- TSSOP-8-3.0mm
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,159 in stock
#C547660
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹37.15 | ₹37.15 |
| 10+ | ₹32.37 | ₹323.70 |
| 30+ | ₹30.42 | ₹912.60 |
| 100+ | ₹27.81 | ₹2,781.00 |
| 500+ | ₹26.72 | ₹13,360.00 |
| 1,000+ | ₹26.06 | ₹26,060.00 |
1 × ₹37.15
₹37.15
excl. GST
₹43.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

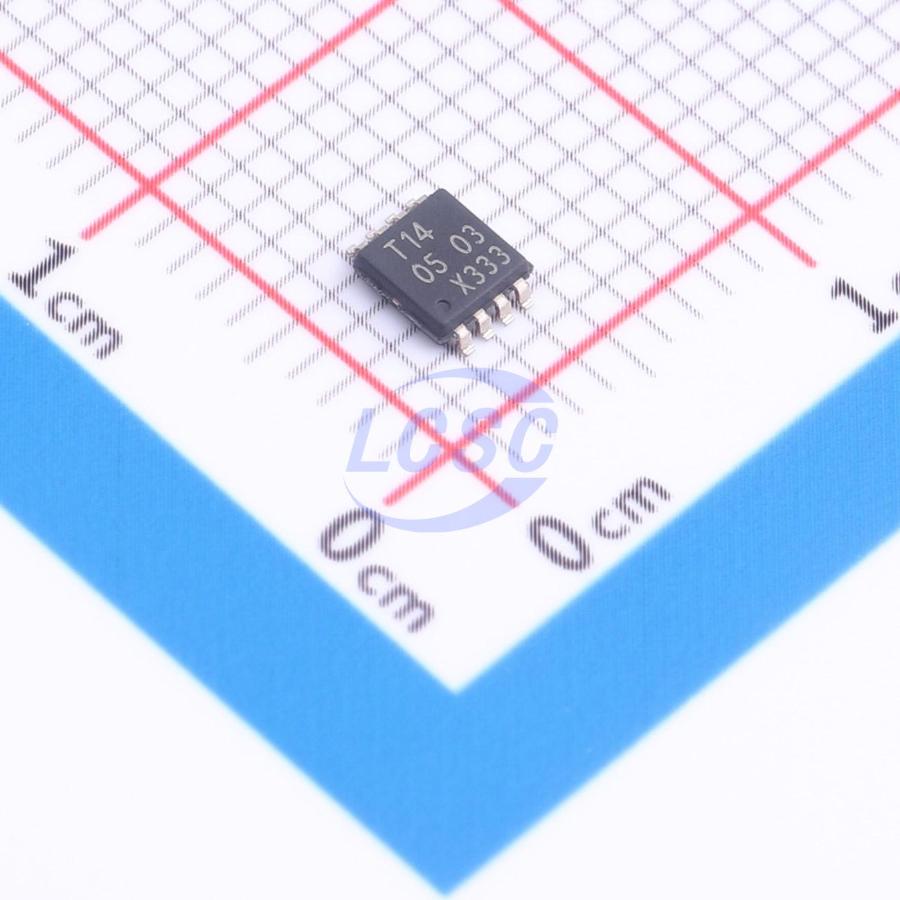

74HCT3G14DP,125
₹37.15 for 1 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HCT
- Input Type
- Schmitt trigger
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 48ns@4.5V,50pF
- Output Logic Level - Low
- 100mV;260mV
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 3
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The 74HC3G14; 74HCT3G14 is a triple inverter with Schmitt-trigger inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
Applications
- Wave and pulse shaper for highly noisy environments
- Astable multivibrators
- Monostable multivibrators
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- Input levels:
- For 74HC3G14: CMOS level For 74HCT3G14: TTL level
- CMOS low power dissipation
- High noise immunity
- Unlimited input rise and fall times
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
