onsemiDatasheet (PDF)

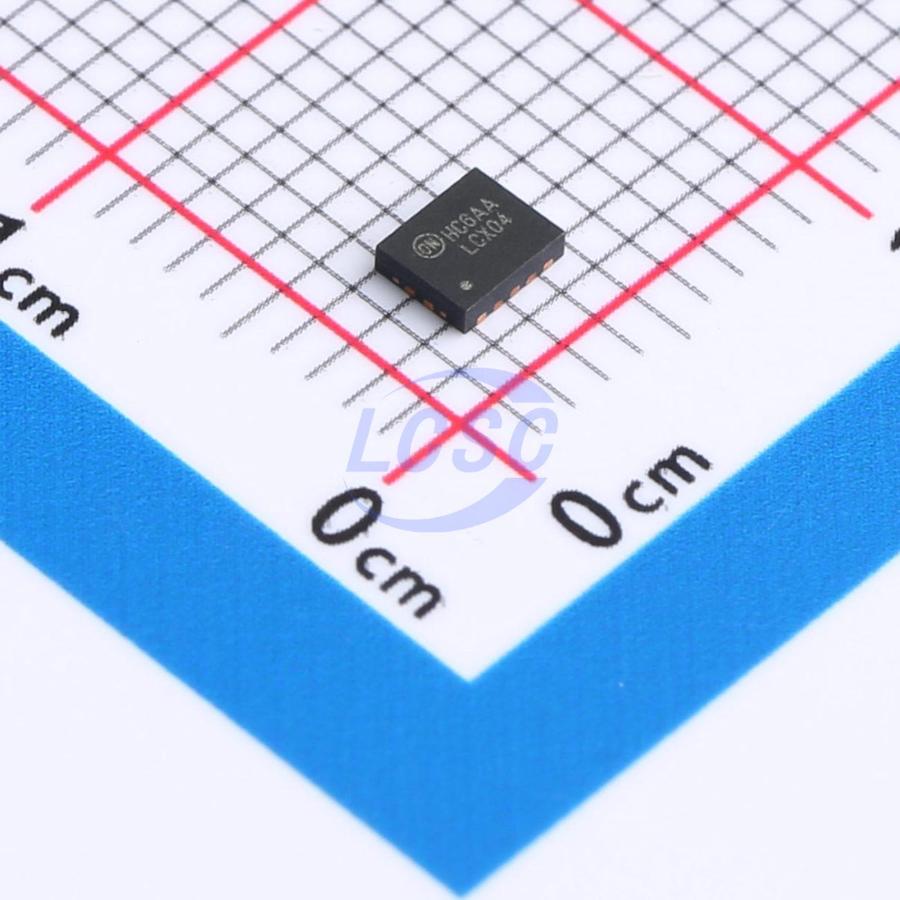

74LCX04BQX
TTL兼容CMOS 2V~3.6V 5.2ns@3.3V,50pF 10uA 6 DQFN-14(2.5x3) Gates and Inverters RoHS
DQFN-14(2.5x3)ROHS3 CompliantActive
Low Voltage Hex Inverter with 5V Tolerant Inputs
- Manufacturer
- onsemi
- Manufacturer part #
- 74LCX04BQX
- Store part #
- C258148
- Package / case
- DQFN-14(2.5x3)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,177 in stock
#C258148
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.74 | ₹40.74 |
| 10+ | ₹35.35 | ₹353.50 |
| 30+ | ₹32.97 | ₹989.10 |
| 100+ | ₹30.18 | ₹3,018.00 |
| 500+ | ₹28.23 | ₹14,115.00 |
| 1,000+ | ₹27.58 | ₹27,580.00 |
1 × ₹40.74
₹40.74
excl. GST
₹48.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LCX04BQX
₹40.74 for 1 + GST
Specifications
- output type
- Push-pull
- Input Type
- TTL兼容CMOS
- Logic Family
- 74LCX
- Voltage - Supply
- 2V~3.6V
- Output Logic Level - Low
- 200mV;600mV;400mV
- Propagation Delay
- 5.2ns@3.3V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Input Logic Level - Low
- 700mV~800mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.7V~2V
- Output Logic Level - High
- 1.8V;2.2V;2.4V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
The LCX04 contains six inverters. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The 74LCX04 is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
Key features
- 5V tolerant inputs
- 2.3V - 3.6V VCC specifications provided
- 5.2ns tPD max. (VCC = 3.3V), 10μA ICC max.
- Power down high impedance inputs and outputs
- ±24mA output drive (VCC = 3.0V)
- Implements proprietary noise/EMI reduction circuitry
- Latch-up performance exceeds JEDEC 78 conditions
- ESD performance:
- Human body model >2000V
- Machine model >200V
- Leadless DQFN package
