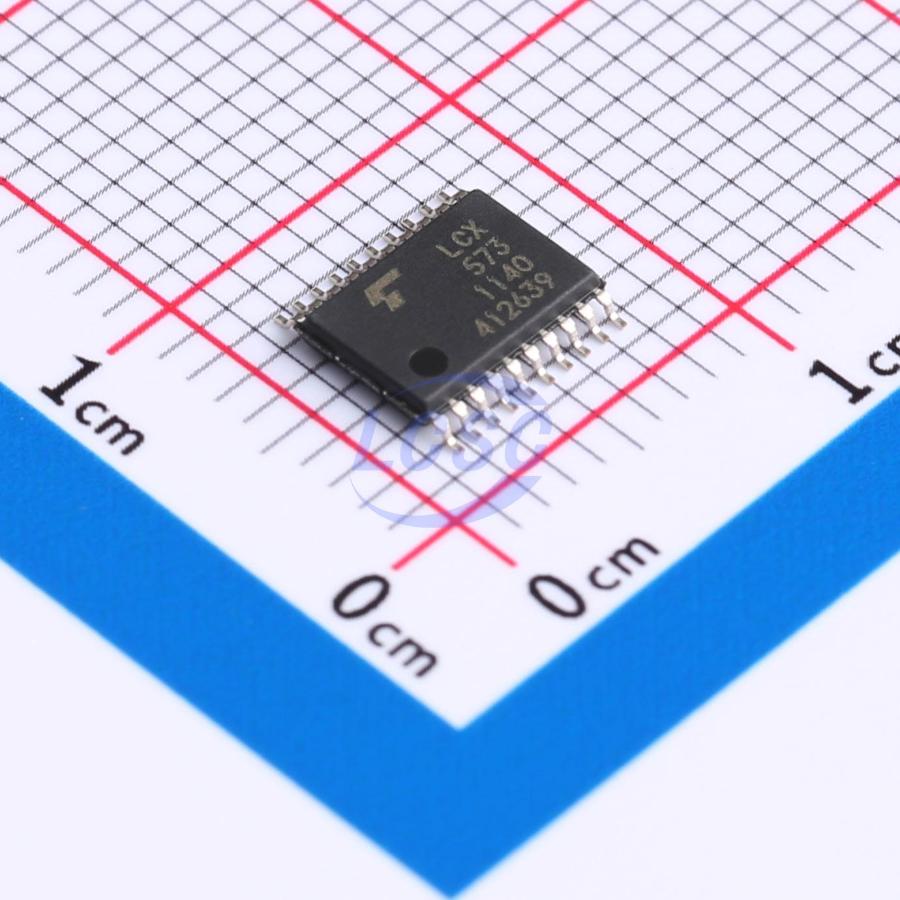

74LCX573FT(AJ)
D Latch 1.65V~3.6V 8 8ns TSSOP-20 Latches RoHS
Low-Voltage Octal D-Type Latch with 5-V Tolerant Inputs and Outputs
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C2652969
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹47.91 | ₹47.91 |
| 10+ | ₹42.18 | ₹421.80 |
| 30+ | ₹39.72 | ₹1,191.60 |
| 100+ | ₹36.65 | ₹3,665.00 |
| 500+ | ₹35.42 | ₹17,710.00 |
| 1,000+ | ₹34.60 | ₹34,600.00 |
1 × ₹47.91
₹47.91
excl. GST
₹56.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LCX573FT(AJ)
₹47.91 for 1 + GST
Specifications
- Quiescent Current
- 10uA
- Series
- 74LCX
- Logic Type
- D Latch
- Voltage - Supply
- 1.65V~3.6V
- Operating Temperature
- -40℃~+85℃
- Current - Output Low(IOL)
- 24mA
- Output Type
- Tri-State
- Setup Time
- 2.5ns
- Number of Gates
- 8
- Current - Output High(IOH)
- 24mA
- Hold Time
- 1.5ns
- Propagation Delay
- 8ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The 74LCX573FT is a high-performance CMOS octal D-type latch. Designed for use in 3.3-V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation. The device is designed for low-voltage (3.3 V) VCC applications, but it could be used to interface to 5-V supply environment for both inputs and outputs. This 8-bit D-type latch is controlled by a latch enable input (LE) and an output enable input (OE). When the OE input is high, the eight outputs are in a high-impedance state. All inputs are equipped with protection circuits against static discharge.
Key features
- Low-voltage operation: VCC = 1.65 to 3.6 V
- High-speed operation: tpd = 8.0 ns (max) (VCC = 3.0 to 3.6 V)
- Output current: I IOH I/IOL = 24 mA (min) (VCC = 3.0 to 3.6 V)
- Power-down protection provided on all inputs and outputs
- Pin and function compatible with the 74 series (74LVC/ALVC/ etc.) 573 type
