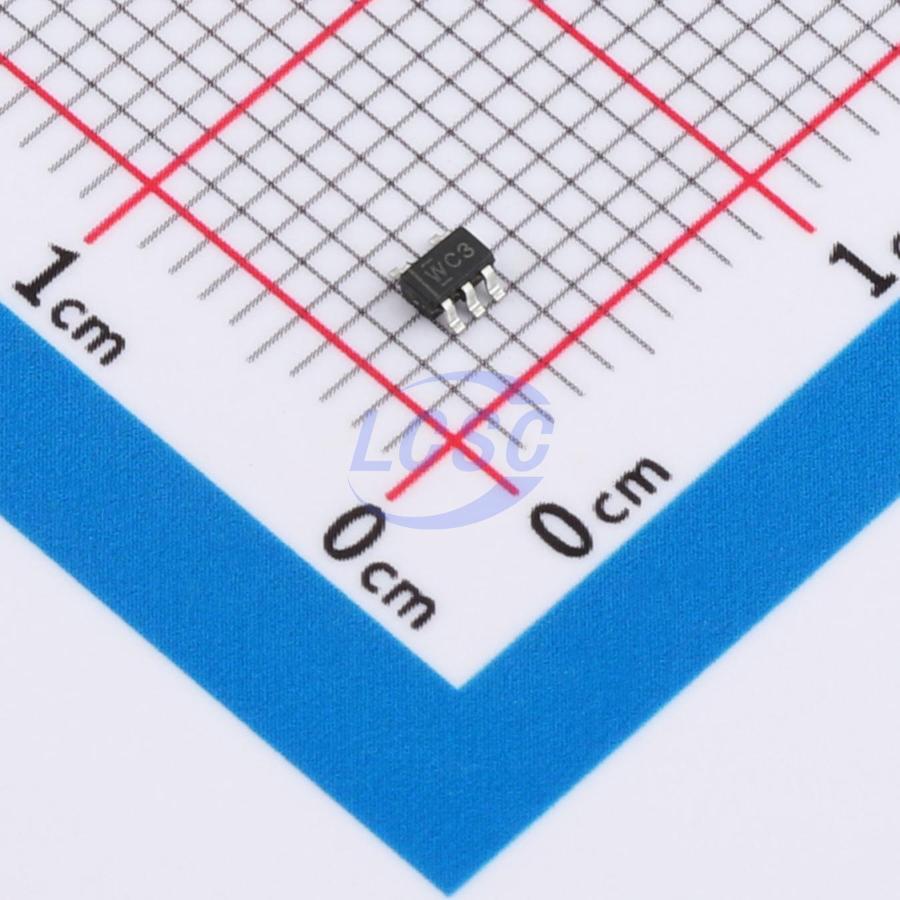

74LV1T04GW-TP

1.6V~5.5V 4ns@5V,15pF 1uA 1 SOT-353 Gates and Inverters

SOT-353RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LV1T04GW-TP
Store part #: C52098016
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,240 in stock

#C52098016

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
5+	₹10.69	₹53.45
50+	₹8.40	₹420.00
150+	₹7.26	₹1,089.00
500+	₹6.42	₹3,210.00
3,000+	₹5.73	₹17,190.00
6,000+	₹5.38	₹32,280.00

Quantity (min 5, multiples of 5)

5 × ₹10.69

₹53.45

excl. GST

₹63.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LV1T04GW-TP

₹53.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 1.6V~5.5V
Output Logic Level - Low: 100mV;200mV;150mV;300mV
Propagation Delay: 4ns@5V,15pF
Features: Power-off protection function
Input Logic Level - Low: 580mV;750mV;800mV
Input Logic Level - High: 940mV;1.02V;1.135V;1.21V;1.35V;1.47V;2.25V;2.5V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2V;2.25V;2.78V;2.6V;2.9V;4.2V;4.1V;4.6V
Quiescent Current(Iq): 1uA
Number of Channels: 1
Current - Output High(IOH): 8mA
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.03 g

Overview

This device is a single-channel level-shifting inverter gate. Its low-threshold input supports 1.8V input logic at VCC=3.3V, enabling 1.8V-to-3.3V level up-translation. Additionally, the 5V-tolerant input pin supports level down-translation (output shifts from 3.3V to 2.5V at VCC=2.5V). The output level references the supply voltage, supporting 1.8V, 2.5V, 3.3V, and 5.0V CMOS logic levels.

Applications

Audio/Video Receivers
Audio Docking Stations
Blu-ray Players & Home Theater Systems
Embedded PCs
Solid State Drives

Key features

Operating voltage range: 1.6V~5.5V
Low quiescent current: Icc=10μA (maximum)
Output drive capability: ±8mA (VCC=5.0V)
Power-off protection
ESD protection exceeds JESD 22 standard: -2000-V Human Body Model (A114-A), -200-V Machine Model (A115-A), -1000-V Charged Device Model (C101)
