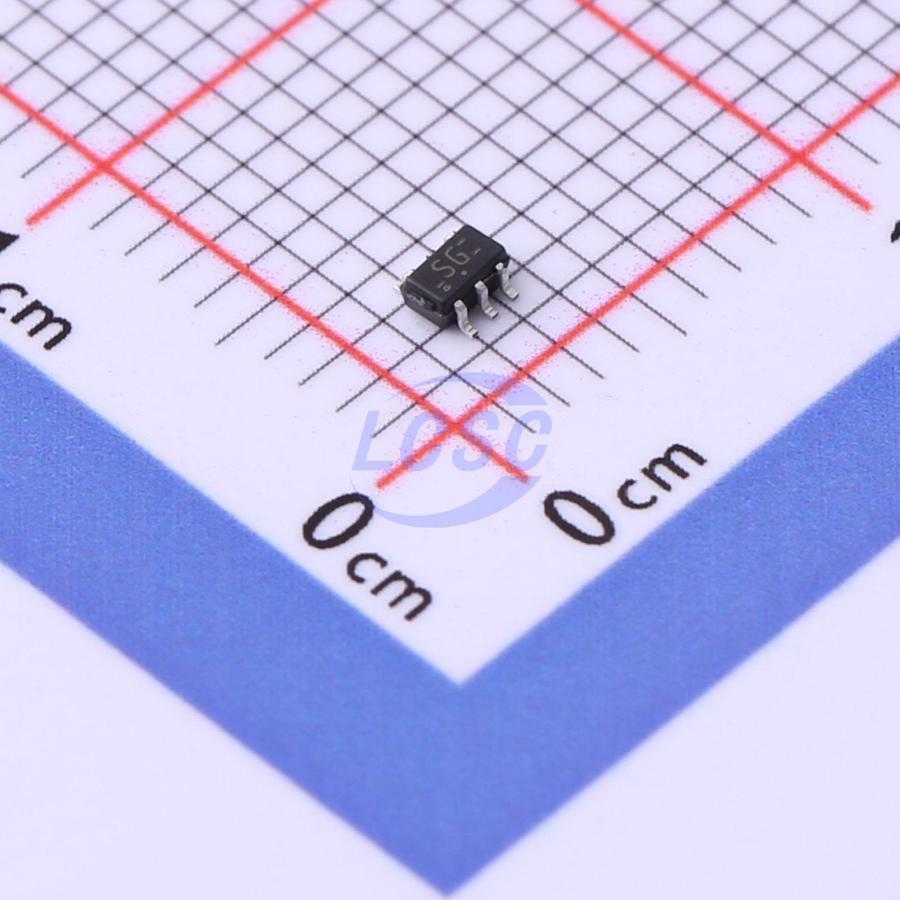

Single supply translating inverter

Manufacturer: Nexperia
Manufacturer part #: 74LV1T04GWH
Store part #: C547932
Package / case: TSSOP-5-1.3mm
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,385 in stock

#C547932

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹52.03	₹52.03
10+	₹45.78	₹457.80
30+	₹43.18	₹1,295.40
100+	₹39.94	₹3,994.00
500+	₹38.43	₹19,215.00
1,000+	₹37.57	₹37,570.00

Quantity (min 1)

1 × ₹52.03

₹52.03

excl. GST

₹61.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LV1T04GWH

₹52.03 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 550mV;710mV;650mV;800mV
Logic Family: 74LV
Input Logic Level - High: 1V;1.03V;1.18V;1.23V;1.37V;1.48V;2.03V;2.11V
Output Logic Level - High: 1.21V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.6V~5.5V
Number of Channels: 1
Propagation Delay: 3.6ns@5V,30pF
Output Logic Level - Low: 100mV;250mV;150mV;200mV;252mV;350mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.038 g

Overview

The 74LV1T04 is a single, level translating inverting buffer. The low threshold inputs support 1.8 input logic at VCC = 3.3 V and can be used in 1.8 to 3.3 level up translation. In addition, the 5 V tolerant input pins enable level down translation (3.3 V to 2.5 V output at VCC = 2.5 V). The output level is referenced to the supply voltage and supports 1.8, 2.5, 3.3 and 5.0 V CMOS levels. The wide VCC range permits the generation of output levels to connect to controllers or processors.

Applications

Portable applications
PC and notebooks
Industrial controller
Telecom

Key features

Single supply voltage translator at 1.8 V, 2.5 V, 3.3 V and 5.0 V
Up translation: 1.2 to 1.8 at VCC = 1.8 V; 1.5 to 2.5 V at VCC = 2.5 V; 1.8 to 3.3 at VCC = 3.3 V; 3.3 to 5.0 V at VCC = 5.0 V
Down translation: 3.3 to 1.8 at VCC = 1.8 V; 3.3 to 2.5 V at VCC = 2.5 V; 5.0 V to 3.3 at VCC = 3.3 V
5 V tolerant inputs
Latch-up performance exceeds 250 mA per JESD 78 Class II
ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
