74LVC08AD,118
Schmitt trigger 1.2V~3.6V 4.1ns@3.3V,50pF 40uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive

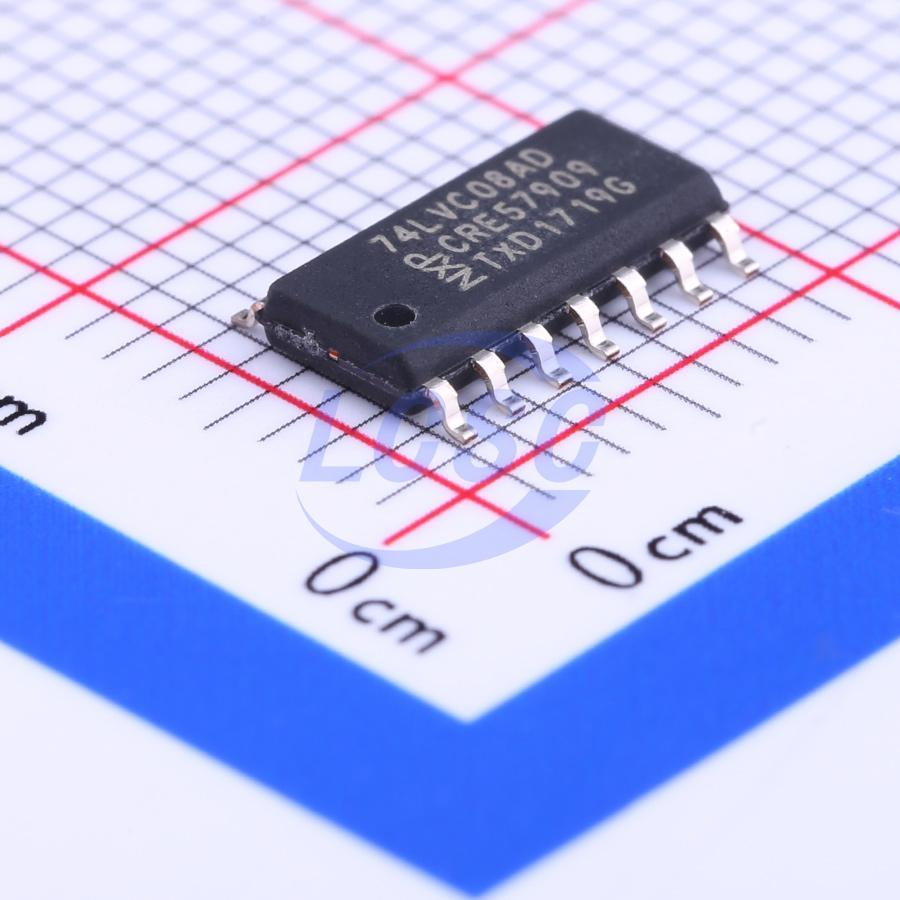

Quad 2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC08AD,118
- Store part #
- C6052
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,785 in stock
#C6052
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.42 | ₹142.10 |
| 50+ | ₹22.25 | ₹1,112.50 |
| 150+ | ₹19.61 | ₹2,941.50 |
| 500+ | ₹16.30 | ₹8,150.00 |
| 2,500+ | ₹14.83 | ₹37,075.00 |
| 5,000+ | ₹13.94 | ₹69,700.00 |
5 × ₹28.42
₹142.10
excl. GST
₹167.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LVC08AD,118
₹142.10 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.2V~3.6V
- Output Logic Level - Low
- 300mV;650mV;800mV
- Propagation Delay
- 4.1ns@3.3V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 120mV~800mV
- Input Logic Level - High
- 1.08V~2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.05V;1.65V;2.05V;2.25V;2V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
The 74LVC08A is a quad 2-input AND gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
Applications
- Translator for mixed 3.3V and 5V applications
Key features
- Overvoltage tolerant inputs to 5.5 V
- Wide supply voltage range from 1.2 V to 3.6 V
- CMOS low power consumption
- Direct interface with TTL levels
- Complies with JEDEC standard:
- JESD8-7A (1.65 V to 1.95 V)
- JESD8-5A (2.3 V to 2.7 V)
- JESD8-C/JESD36 (2.7 V to 3.6 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ74LVC08ADN#C52145658JSCJ · SOP-14 | JSCJ | SOP-14 | 3,980 | ₹22.11 · 3,980 in stock | View |
| 74LVC08AD-Q100,118#C548068Nexperia · SOP-14 | Nexperia | SOP-14 | On request | ₹42.39 · 0 in stock | View | |
Same category
More in Gates and Inverters
