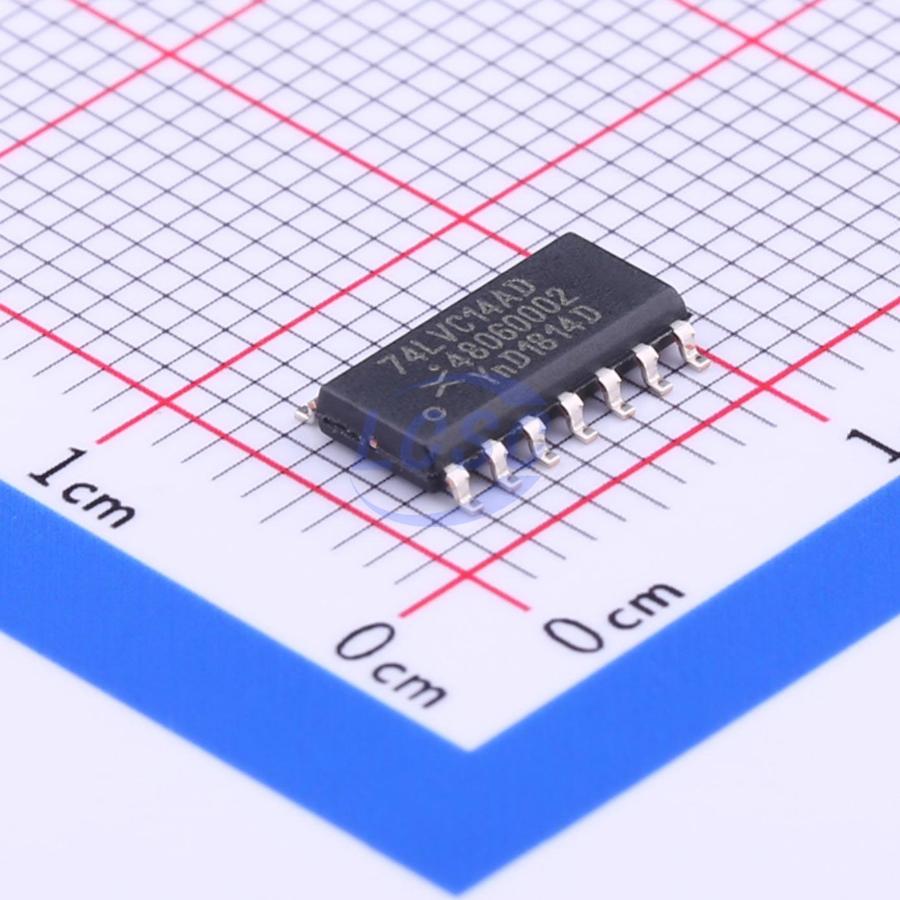

Hex inverting Schmitt trigger with 5 V tolerant input
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC14AD,118
- Store part #
- C6065
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,895 in stock
#C6065
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.60 | ₹143.00 |
| 50+ | ₹22.37 | ₹1,118.50 |
| 150+ | ₹19.71 | ₹2,956.50 |
| 500+ | ₹16.38 | ₹8,190.00 |
| 2,500+ | ₹14.90 | ₹37,250.00 |
| 5,000+ | ₹14.01 | ₹70,050.00 |
5 × ₹28.60
₹143.00
excl. GST
₹168.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LVC14AD,118
₹143.00 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.2V~3.6V
- Output Logic Level - Low
- 800mV
- Propagation Delay
- 6.4ns@3.3V,50pF
- Features
- Noise suppression function
- Input Logic Level - High
- 1V~2V
- Input Logic Level - Low
- 120mV~800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2V~3.6V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.323 g
Overview
The 74LVC14A is a hex inverter with Schmitt-trigger inputs. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments.
Applications
- Wave and pulse shapers for highly noisy environments
- Astable multivibrators
- Monostable multivibrators
Key features
- Wide supply voltage range from 1.2 V to 3.6 V
- Overvoltage tolerant inputs to 5.5 V
- CMOS low-power consumption
- Direct interface with TTL levels
- Unlimited input rise and fall times
- Complies with JEDEC standard JESD8-C/JESD36 (2.7 V to 3.6 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
