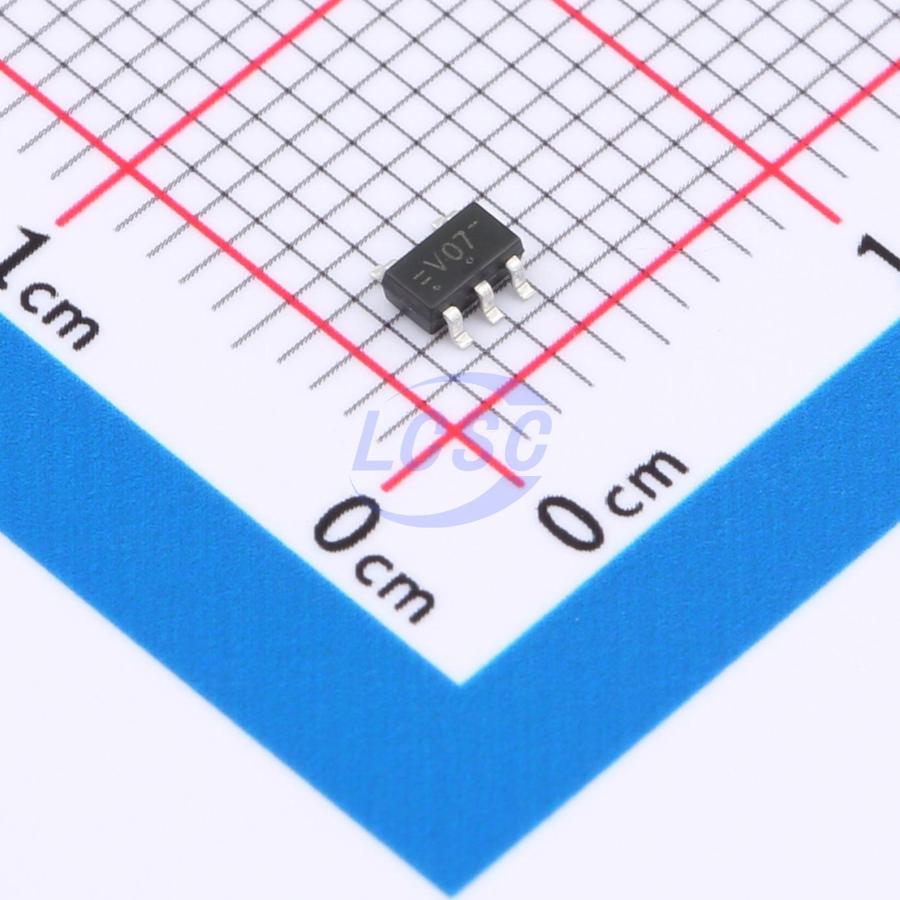

74LVC1G07GV
1.65V~5.5V 7ns@5V,50pF 10uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G07GV
- Store part #
- C19829590
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,800 in stock
#C19829590
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.47 | ₹74.70 |
| 100+ | ₹5.90 | ₹590.00 |
| 300+ | ₹5.12 | ₹1,536.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.06 | ₹24,360.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹7.47
₹74.70
excl. GST
₹88.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G07GV
₹74.70 for 10 + GST
Specifications
- output type
- Open-drain
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 800mV
- Propagation Delay
- 7ns@5V,50pF
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The 74LVC1G07 is a single Buffer/Driver with open-drain output. This device has power-down protective circuit, preventing device destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Inputs and open-drain output accept voltage up to 5.5V
- Low power current: ICC = 10μA(Max)
- ±24mA output drive (VCC = 3.3V)
- Power down protection
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
