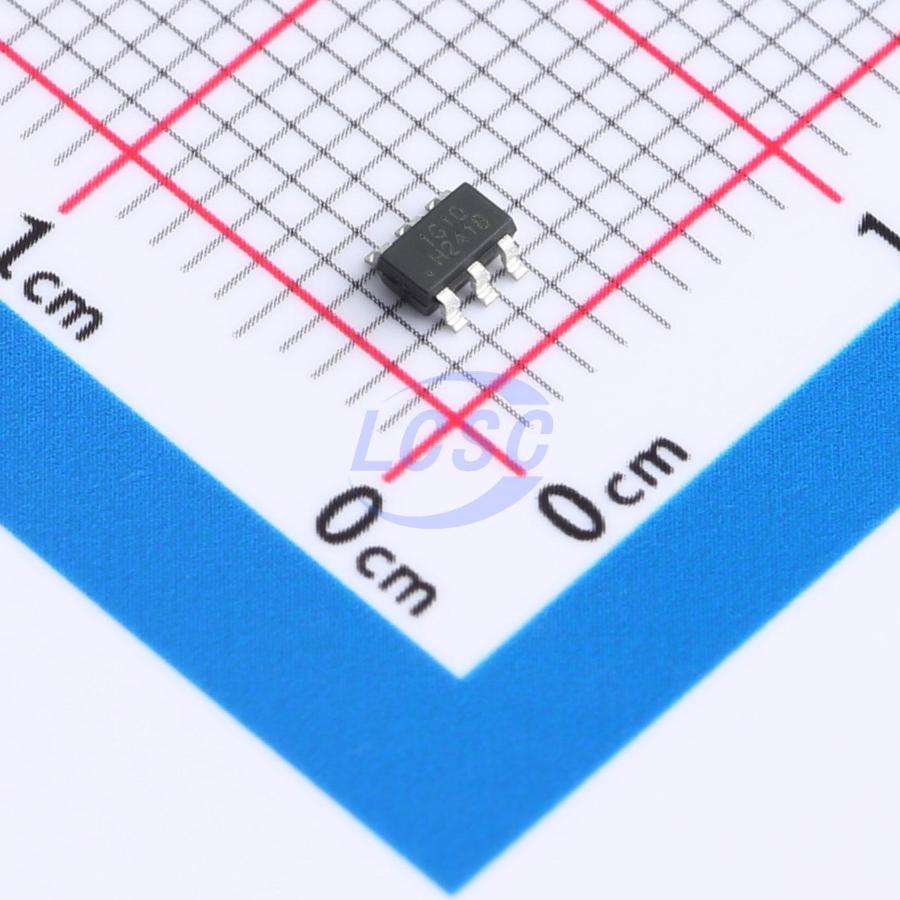

74LVC1G10S6
1.65V~5.5V 4.9ns@3.3V,50pF 10uA SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
Dual 2-input NAND gate
- Manufacturer
- Slkor
- Manufacturer part #
- 74LVC1G10S6
- Store part #
- C42380690
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,380 in stock
#C42380690
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.60 | ₹86.00 |
| 100+ | ₹6.84 | ₹684.00 |
| 300+ | ₹5.97 | ₹1,791.00 |
| 3,000+ | ₹5.31 | ₹15,930.00 |
| 6,000+ | ₹4.78 | ₹28,680.00 |
| 9,000+ | ₹4.51 | ₹40,590.00 |
10 × ₹8.60
₹86.00
excl. GST
₹101.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G10S6
₹86.00 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 4.9ns@3.3V,50pF
- Output Logic Level - Low
- 550mV
- Features
- Live insertion protection;Local shutdown mode;Rear drive protection
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;3
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
This 3-input NAND gate is designed for 1.65-V to 5.5-V Vcc operation. The 74LVC1G10 device features a three-input NAND gate. The output state is determined by eight patterns of 3-bit input. All inputs can be connected to VCC or GND. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Applications
- Many design applications
- Applications that require a processor or other delicate device with specific voltage timing requirements
Key features
- Wide operating voltage range.
- Operates from 1.65 V to 5.5 V.
- Allows down voltage translation.
- Inputs accept voltages to 5.5 V.
- Ioff feature allows voltages on the inputs and outputs, when Vcc is 0 V.
