JSMSEMIDatasheet (PDF)

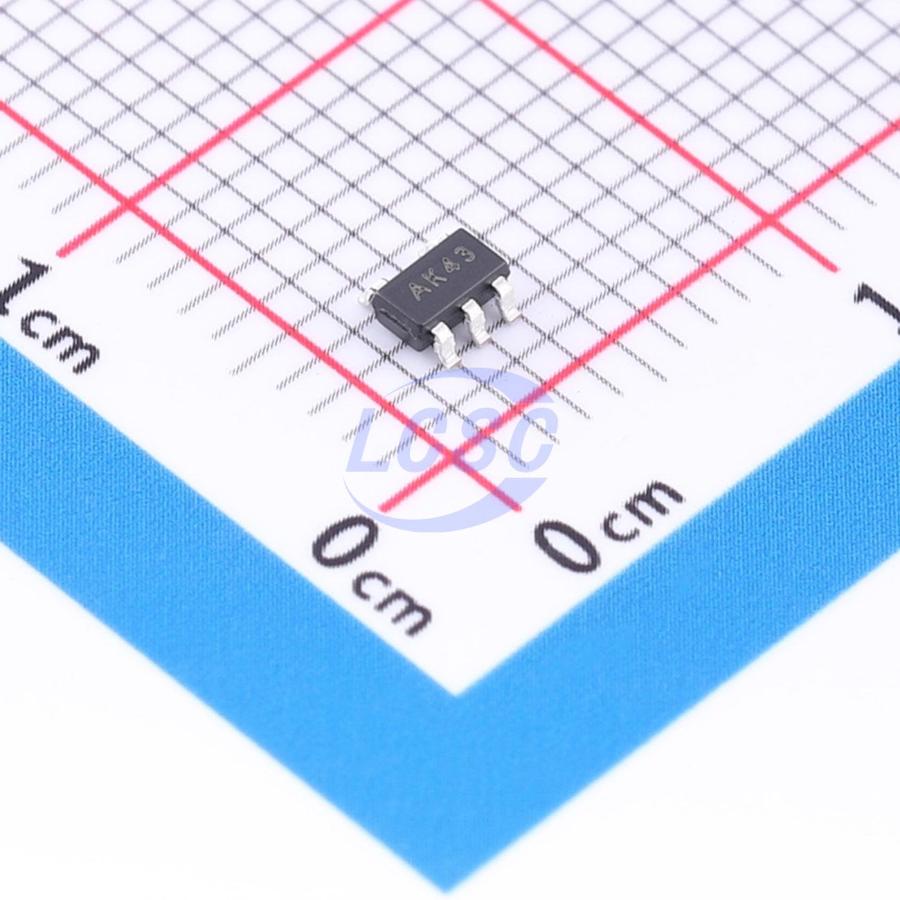

74LVC1G14GV,125-JSM
Schmitt trigger 1.65V~5.5V 4uA 1 SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G14GV,125-JSM
- Store part #
- C53436282
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,660 in stock
#C53436282
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.41 | ₹54.10 |
| 100+ | ₹4.31 | ₹431.00 |
| 300+ | ₹3.76 | ₹1,128.00 |
| 3,000+ | ₹3.35 | ₹10,050.00 |
| 6,000+ | ₹3.00 | ₹18,000.00 |
| 9,000+ | ₹2.84 | ₹25,560.00 |
10 × ₹5.41
₹54.10
excl. GST
₹63.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G14GV,125-JSM
₹54.10 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
The 74LVC1G14 is a single Schmitt-trigger inverter. The input is compatible with 3.3V or 5V signals, making it suitable for mixed 3.3V/5V environments.
Key features
- Supply voltage range: 1.65V ~ 5.5V
- Input supports up to 5.5V
- ±24mA output drive at 3.0V
- High impedance when VCC = 0V
- Operating temperature range: -40°C ~ +125°C
- Package: SOT23-5/SOT353/XSON6
