TECH PUBLIC

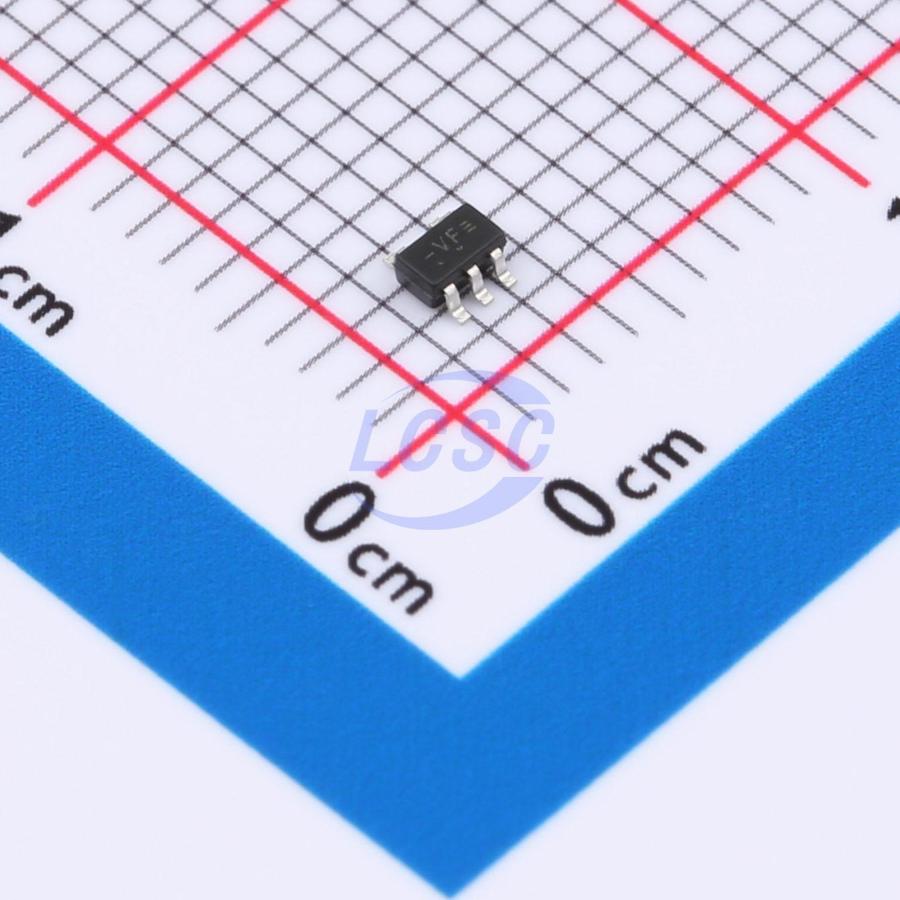

74LVC1G14GW

SOT-353 Gates and Inverters

SOT-353RoHSActive

Single Schmitt-trigger Inverter

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LVC1G14GW
Store part #: C19829653
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,230 in stock

#C19829653

Stock & price checked 44 h ago

Quantity	Unit price	Pack price
10+	₹7.69	₹76.90
100+	₹6.13	₹613.00
300+	₹5.34	₹1,602.00
3,000+	₹4.76	₹14,280.00
6,000+	₹4.29	₹25,740.00
9,000+	₹4.05	₹36,450.00

Quantity (min 10, multiples of 10)

10 × ₹7.69

₹76.90

excl. GST

₹90.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G14GW

₹76.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Power shutdown protection;Noise suppression function;Power-off protection function

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

The 74LVC1G14 is a single Schmitt-trigger inverter, it provides the function Y(overdot)=A. The device have different input threshold levels for positivegoing (VT+) and negative-going (VT-) signals because of the Schmitt-trigger action in the input.

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
PCs, Networking, Notebooks, Netbooks, PDAs Tablet Computers, E-readers
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set-Top Box
Cell Phones, Personal Navigation/GPS
MP3 Players, Cameras, Video Recorders

Key features

Operation Voltage Range: 1.65V ~ 5.5V
Low power current: ICC = 10μA(Max)
±24mA output drive (VCC = 3.0V)
Power down protection
ESD Protection Exceeds JESD22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
SOT23-5 Package Available
SOT353 Package Available
