JSMSEMIDatasheet (PDF)

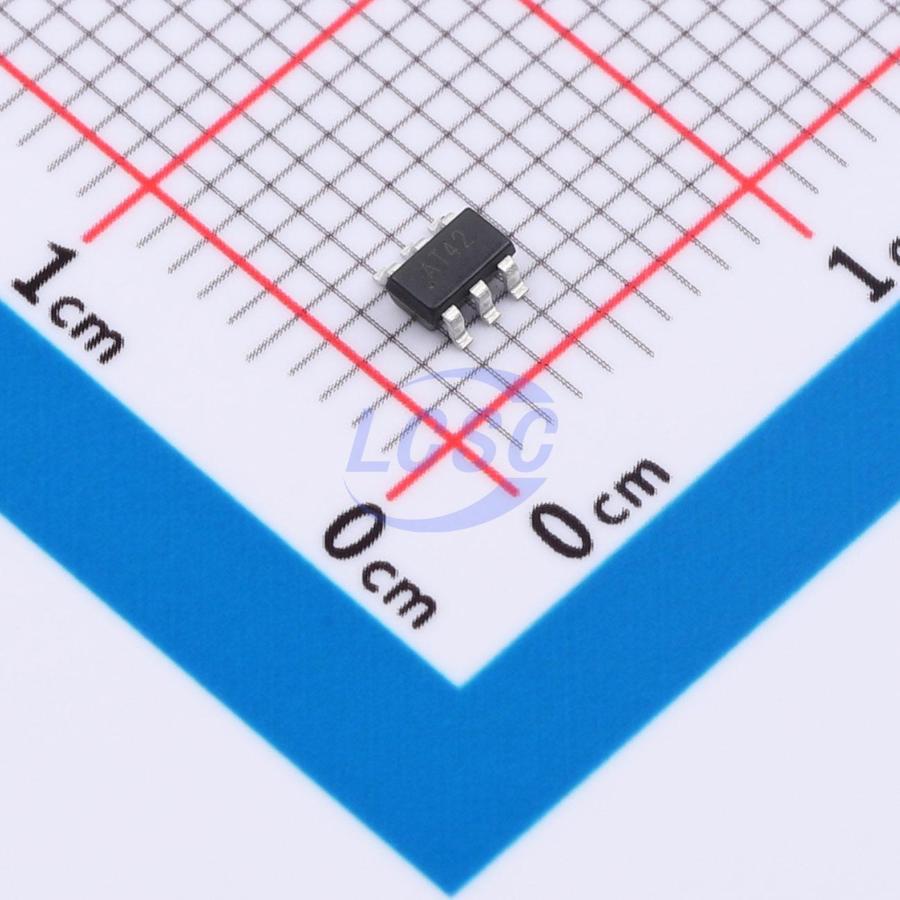

74LVC1G157GV,125-JSM
1.65V~5.5V 2/1 4uA 9ns@5V,50pF Level shifting TSOP-6 Signal Switches, Multiplexers, Decoders RoHS
TSOP-6ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G157GV,125-JSM
- Store part #
- C53114339
- Package / case
- TSOP-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
355 in stock
#C53114339
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.21 | ₹61.05 |
| 50+ | ₹9.74 | ₹487.00 |
| 150+ | ₹8.49 | ₹1,273.50 |
| 500+ | ₹7.55 | ₹3,775.00 |
| 3,000+ | ₹6.81 | ₹20,430.00 |
| 6,000+ | ₹6.44 | ₹38,640.00 |
5 × ₹12.21
₹61.05
excl. GST
₹72.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G157GV,125-JSM
₹61.05 for 5 + GST
Specifications
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 2/1
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 4uA
- Current - Output High(IOH)
- 24mA
- Propagation Delay
- 9ns@5V,50pF
- Function
- Level shifting
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The 74LVC1G157 is a single 2-input multiplexer that selects data from two data inputs (I0 and I1) under the control of a common data select input (S). The state of the common data select input determines which specific register the data comes from. The output (Y) presents the selected data in true (non-inverted) form. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V applications.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Inputs accept voltages up to 5V
- Operating temperature range: -40°C to +125°C
- Package: TSOP-6-1.5mm
