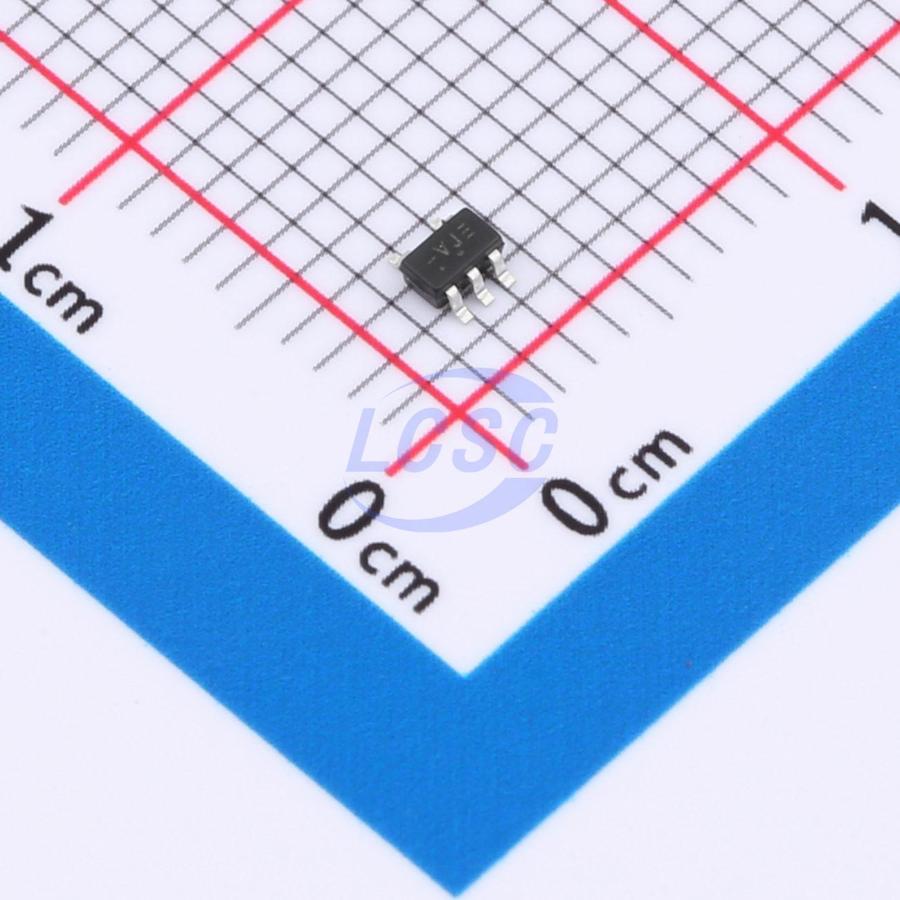

74LVC1G17GW

Schmitt trigger 1.65V~5.5V 8.3ns@5V,50pF 10uA SOT-353 Gates and Inverters

SOT-353RoHSActive

Single Schmitt-trigger Buffer

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LVC1G17GW
Store part #: C19829654
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,490 in stock

#C19829654

Stock & price checked 44 h ago

Quantity	Unit price	Pack price
10+	₹7.10	₹71.00
100+	₹5.54	₹554.00
300+	₹4.75	₹1,425.00
3,000+	₹4.17	₹12,510.00
6,000+	₹3.70	₹22,200.00
9,000+	₹3.47	₹31,230.00

Quantity (min 10, multiples of 10)

10 × ₹7.10

₹71.00

excl. GST

₹83.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G17GW

₹71.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 8.3ns@5V,50pF
Output Logic Level - Low: 100mV;300mV;400mV;550mV
Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Current - Output High(IOH): 32mA
Number of Channels: 1;1
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

The 74LVC1G17 is a single Schmitt-trigger buffer with the logic function Y = A. Due to the Schmitt-trigger action at the input, the device has different input threshold levels for rising-edge signals (VT+) and falling-edge signals (VT−). The device incorporates a power-down protection circuit to prevent damage during power-down conditions.

Applications

Voltage level translation
General-purpose logic
Power-down signal isolation

Key features

Operating voltage range: 1.65V ~ 5.5V
Low supply current: ICC = 10μA (maximum)
±24mA output drive capability (VCC=3.0V)
Power-off protection
ESD protection exceeds JESD 22: 2000-V Human Body Model (A114-A), 1000-V Charged Device Model (C101)
Available in SOT23-5 package
Available in SOT353 package
