SlkorDatasheet (PDF)

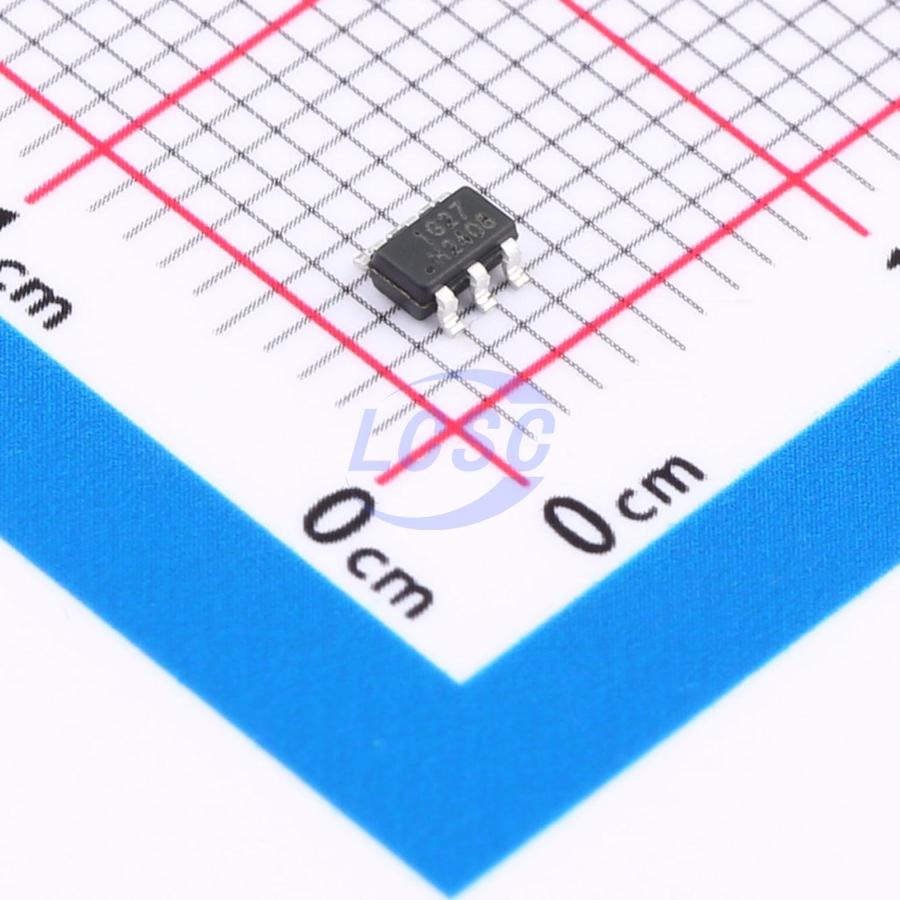

74LVC1G27S6
1.65V~5.5V 5.4ns@3.3V,50pF 10uA SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
Single 3-input Positive-Logic NOR Gate
- Manufacturer
- Slkor
- Manufacturer part #
- 74LVC1G27S6
- Store part #
- C42380692
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C42380692
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.69 | ₹53.45 |
| 50+ | ₹8.49 | ₹424.50 |
| 150+ | ₹7.41 | ₹1,111.50 |
| 500+ | ₹6.59 | ₹3,295.00 |
| 3,000+ | ₹5.94 | ₹17,820.00 |
| 6,000+ | ₹5.61 | ₹33,660.00 |
5 × ₹10.69
₹53.45
excl. GST
₹63.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G27S6
₹53.45 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 5.4ns@3.3V,50pF
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 3;1
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
- The 74LVC1G27 device contains one 3-input positive-NOR gate and performs the Boolean function ΔY = (A + B + C) (overline) or Y = A (overline) · B (overline) · C (overline) in positive logic. - This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The Ioff feature allows voltages on the inputs and outputs, when Vcc is 0 V.
Applications
- - Implement NOR logic with a high output drive
- - LED application
- - High speed applications up to 100Mhz
Key features
- - Wide operating voltage range.
- - Operates from 1.65 V to 5.5 V.
- - Allows down voltage translation.
- - Inputs accept voltages to 5.5 V.
- - Ioff feature allows voltages on the inputs and outputs, when Vcc is 0 V.
