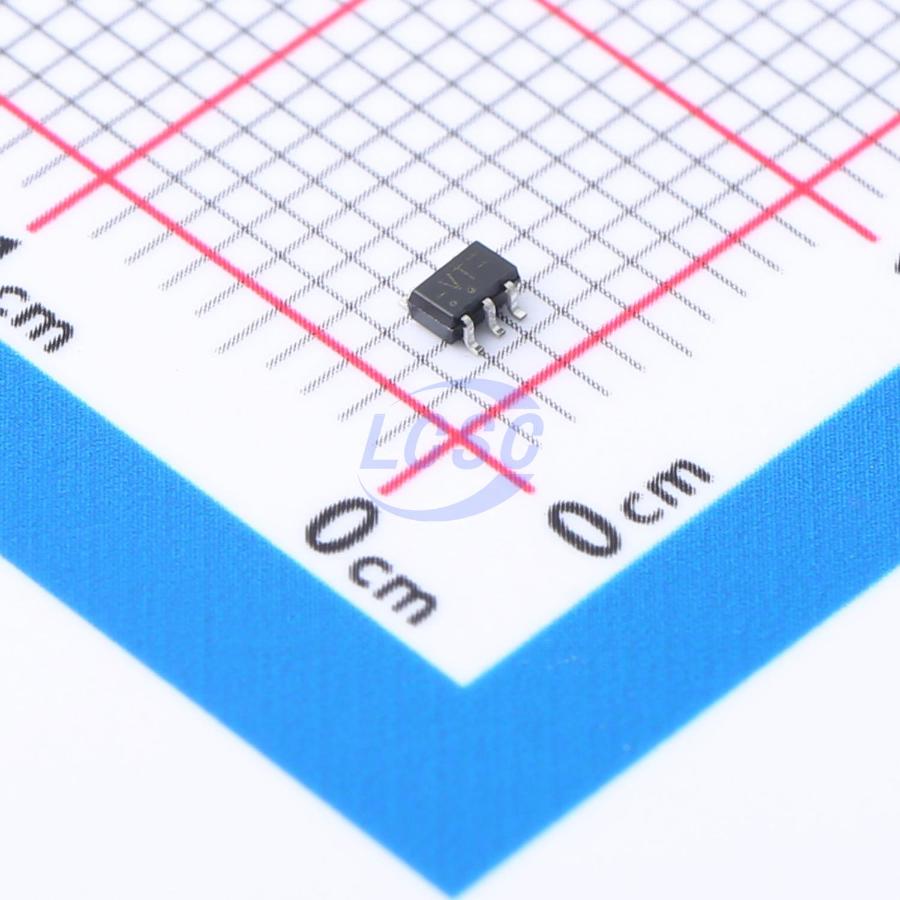

74LVC1G80GW-Q100,1
1.65V~5.5V 1 1 1.8ns@5V,50pF TSSOP-5-1.3mm Flip Flops RoHS
Single D-type flip-flop; positive-edge trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC1G80GW-Q100,1
- Store part #
- C548434
- Package / case
- TSSOP-5-1.3mm
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,304 in stock
#C548434
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.63 | ₹54.63 |
| 10+ | ₹48.14 | ₹481.40 |
| 30+ | ₹45.34 | ₹1,360.20 |
| 100+ | ₹41.89 | ₹4,189.00 |
| 500+ | ₹40.38 | ₹20,190.00 |
| 1,000+ | ₹39.52 | ₹39,520.00 |
1 × ₹54.63
₹54.63
excl. GST
₹64.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G80GW-Q100,1
₹54.63 for 1 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Number of Bits per Element
- 1
- Operating Temperature
- -40℃~+125℃
- Series
- 74LVC Series
- Number of Elements
- 1
- Current - Output High(IOH)
- 24mA
- Current - Output Low(IOL)
- 24mA
- Setup Time
- 500ps
- Quiescent Current
- 100nA
- Hold Time
- -100ps
- Propagation Delay
- 1.8ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
The 74LVC1G80-Q100 is a single positive-edge triggered D-type flip-flop. Data at the D-input that meets the set-up and hold time requirements on the LOW-to-HIGH clock transition will be stored in the flip-flop and its complement will appear at the overline{Q} output. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V environments. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
Applications
- Suitable for automotive applications
- Ideal as a voltage translator in mixed 3.3V and 5V environments
- Suitable for partial power-down applications
Key features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1) Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
- Wide supply voltage range from 1.65 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- ±24 mA output drive (VCC = 3.0 V)
- CMOS low power dissipation
- Direct interface with TTL levels
- IOFF circuitry provides partial Power-down mode operation
- Latch-up performance exceeds 250 mA
- Complies with JEDEC standard: JESD8-7 (1.65 V to 1.95 V) JESD8-5 (2.3 V to 2.7 V) JESD8C (2.7 V to 3.6 V) JESD36 (4.5 V to 5.5 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
