JSMSEMIDatasheet (PDF)

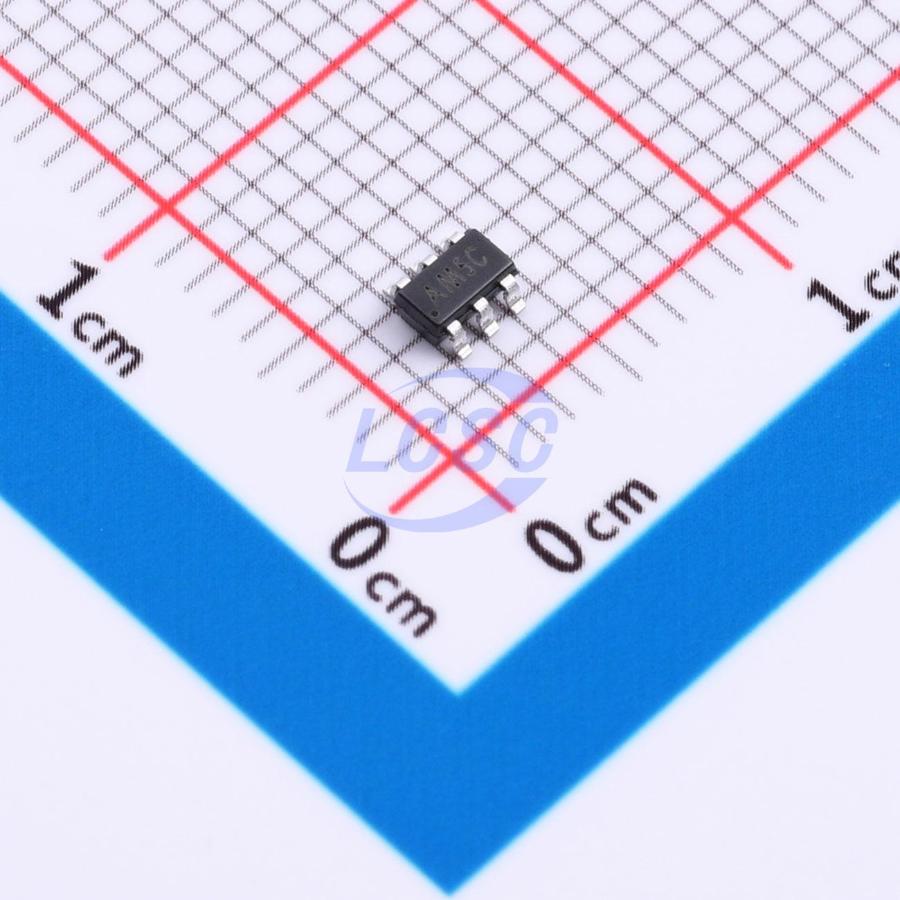

74LVC2G04GV,125-JSM
1.65V~5.5V 12.5ns 4uA 2 SOT-23-6 Gates and Inverters RoHS
SOT-23-6ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC2G04GV,125-JSM
- Store part #
- C53114398
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,700 in stock
#C53114398
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.82 | ₹78.20 |
| 100+ | ₹6.23 | ₹623.00 |
| 300+ | ₹5.44 | ₹1,632.00 |
| 3,000+ | ₹4.84 | ₹14,520.00 |
| 6,000+ | ₹4.37 | ₹26,220.00 |
| 9,000+ | ₹4.13 | ₹37,170.00 |
10 × ₹7.82
₹78.20
excl. GST
₹92.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G04GV,125-JSM
₹78.20 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;700mV;450mV;600mV;800mV
- Propagation Delay
- 12.5ns
- Features
- Power shutdown protection
- Input Logic Level - High
- 1.7V;2V
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 950mV;1.7V;1.9V;2V;3.4V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 2
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The 74LVC2G04 provides dual inverting buffers. The inputs can be driven by 3.3V or 5V devices. These features make the device suitable for use in mixed 3.3V and 5V environments.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- 5V-tolerant inputs for easy interface with 5V logic
- ±24mA output drive capability (VCC = 3.0V)
- CMOS low power consumption
- Operating temperature range: -40°C to +125°C
- Package: SOT-23-6/SOT-363
