JSMSEMIDatasheet (PDF)

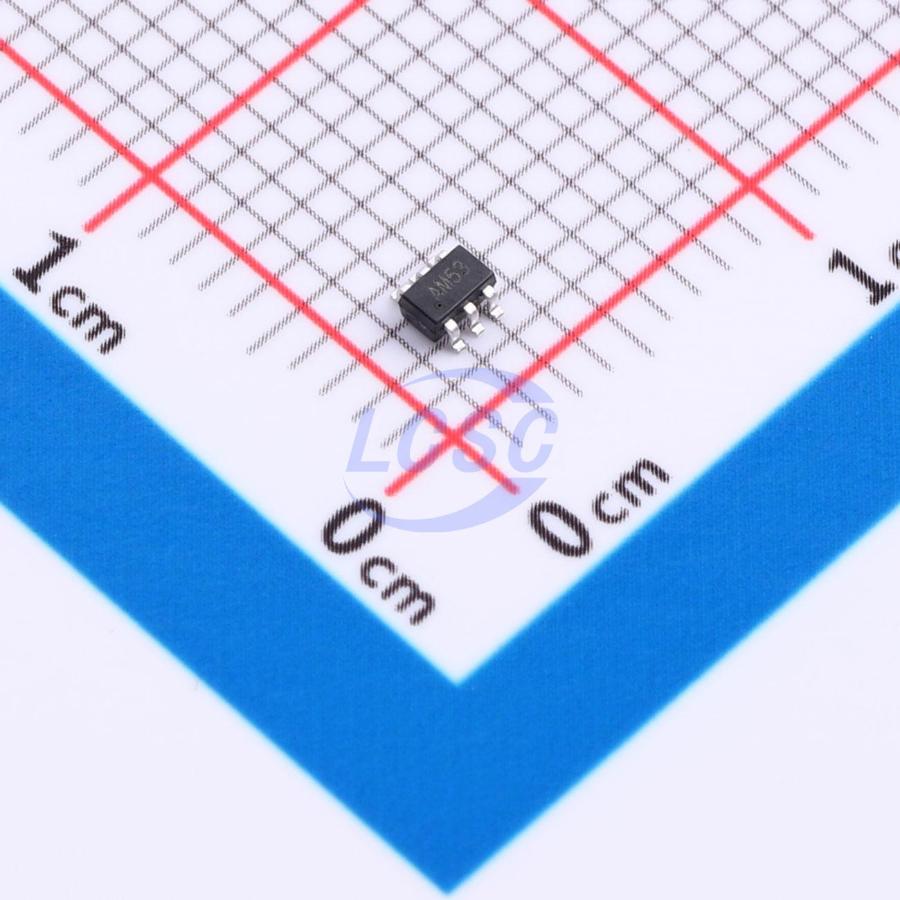

74LVC2G04GW-JSM
1.65V~5.5V 4uA 2 SOT-363 Gates and Inverters RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC2G04GW-JSM
- Store part #
- C53114286
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,690 in stock
#C53114286
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.33 | ₹73.30 |
| 100+ | ₹5.85 | ₹585.00 |
| 300+ | ₹5.09 | ₹1,527.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.09 | ₹24,540.00 |
| 9,000+ | ₹3.86 | ₹34,740.00 |
10 × ₹7.33
₹73.30
excl. GST
₹86.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G04GW-JSM
₹73.30 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Features
- Power shutdown protection
- Input Logic Level - High
- 1.7V;2V
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The 74LVC2G04 provides dual inverting buffers. The inputs can be driven by 3.3V or 5V devices. These features make the device suitable for use in mixed 3.3V and 5V environments.
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- 5V-tolerant inputs for easy interface with 5V logic
- Output drive capability of ±24mA (VCC = 3.0V)
- CMOS low power consumption
- Operating temperature range: -40℃ ~ +125℃
- Package: SOT-23-6/SOT-363
