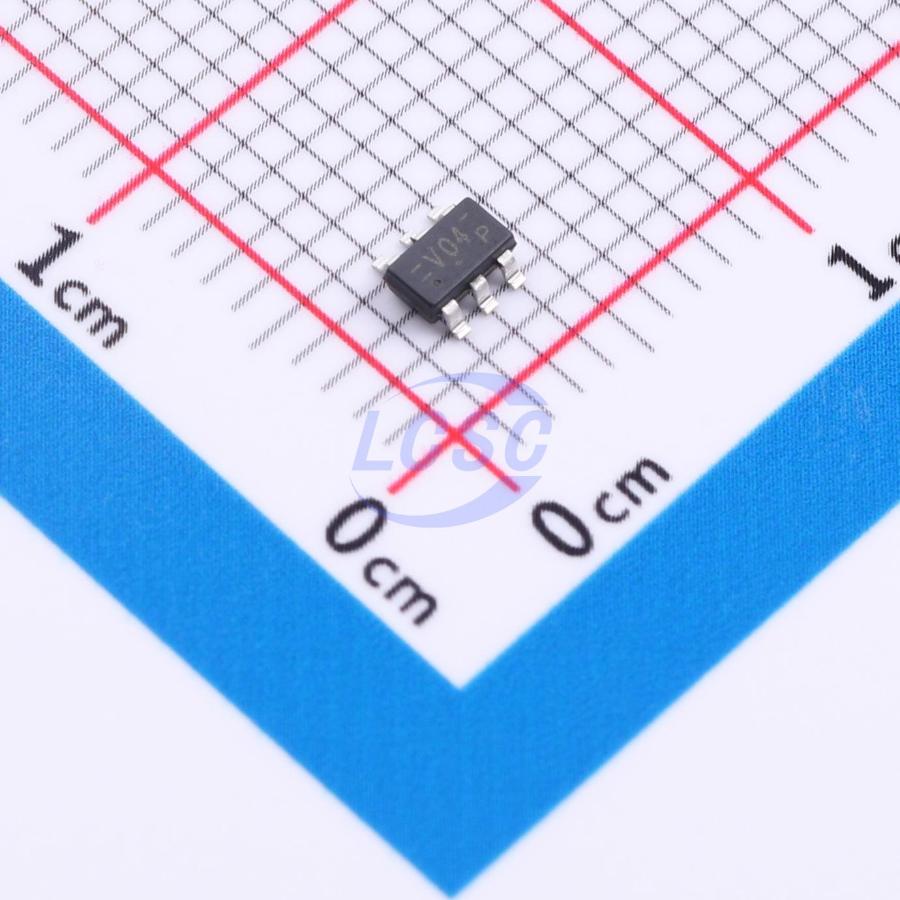

TECH PUBLICDatasheet (PDF)
74LVC2G04W6-TP
1.65V~5.5V 1.9ns@5V,50pF 10uA 2 SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC2G04W6-TP
- Store part #
- C52145920
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C52145920
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.17 | ₹71.70 |
| 100+ | ₹5.64 | ₹564.00 |
| 300+ | ₹4.88 | ₹1,464.00 |
| 3,000+ | ₹4.30 | ₹12,900.00 |
| 6,000+ | ₹3.84 | ₹23,040.00 |
| 9,000+ | ₹3.61 | ₹32,490.00 |
10 × ₹7.17
₹71.70
excl. GST
₹84.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G04W6-TP
₹71.70 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 1.9ns@5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Features
- Power shutdown protection;Power-off protection function
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 700mV;800mV
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
74LVC2G04 is a dual inverter gate that provides the Boolean function Y = Ā in positive logic. The device features a power-off protection circuit to prevent damage when power is removed.
Key features
- Operating voltage range: 1.65 ~ 5.5V
- Input accepts voltages up to 5.5V
- High noise immunity
- Low power consumption
- Maximum propagation delay of 3.2 ns at 5V
- ESD protection exceeding JESD 22 standard
- Human Body Model (A114-A): 2000V
- Charged Device Model (C101): 1000V
- Available in SOT23-6 package
- Available in SOT363 package
