TECH PUBLIC

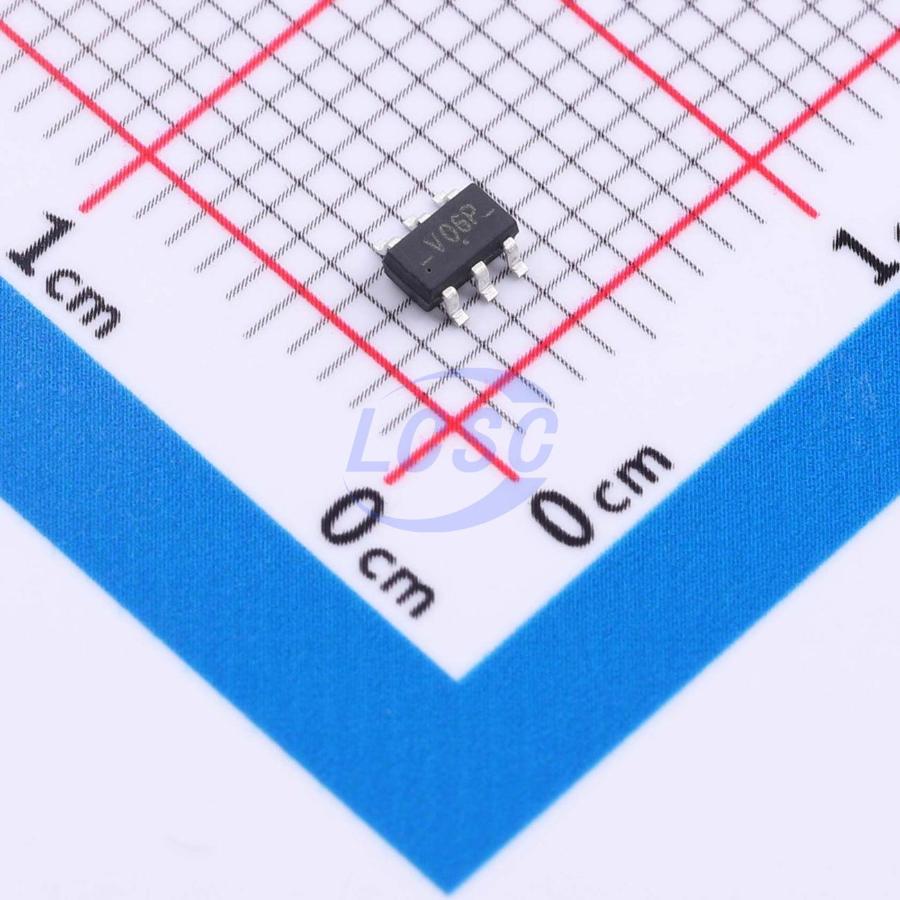

74LVC2G06W6-TP

1.65V~5.5V 1ns@5V,50pF 10uA 2 SOT-23-6 Gates and Inverters

SOT-23-6RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LVC2G06W6-TP
Store part #: C52145918
Package / case: SOT-23-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,815 in stock

#C52145918

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹10.62	₹53.10
50+	₹8.35	₹417.50
150+	₹7.22	₹1,083.00
500+	₹6.36	₹3,180.00
3,000+	₹5.69	₹17,070.00
6,000+	₹5.34	₹32,040.00

Quantity (min 5, multiples of 5)

5 × ₹10.62

₹53.10

excl. GST

₹62.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC2G06W6-TP

₹53.10 for 5 + GST

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 1ns@5V,50pF
Features: Power shutdown protection;Power-off protection function
Input Logic Level - High: 1.7V;2V
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 10uA
Number of Channels: 2

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

74LVC2G06W6-TP is a dual inverter gate CMOS device with open-drain outputs, implementing the Boolean function Y = Ā in positive logic. The device features a built-in power-off protection circuit to prevent damage during power-down conditions.

Applications

Audio/Video Receivers
Audio Docking Stations
Blu-ray Players & Home Theater Systems
Embedded PCs
Personal Digital Assistants
Telecom/Server AC/DC Power Supplies: Single Controller: Analog & Digital
SSDs: Client & Enterprise
Wireless Headsets, Keyboards & Mice

Key features

Operating voltage range: 1.65V ~ 5.5V
Inputs and open-drain outputs tolerant up to 5.5V
High noise immunity
ESD protection exceeds JESD 22: HBM 2000V (A114-A), MM 200V (A115-A), CDM 1000V (C101)
