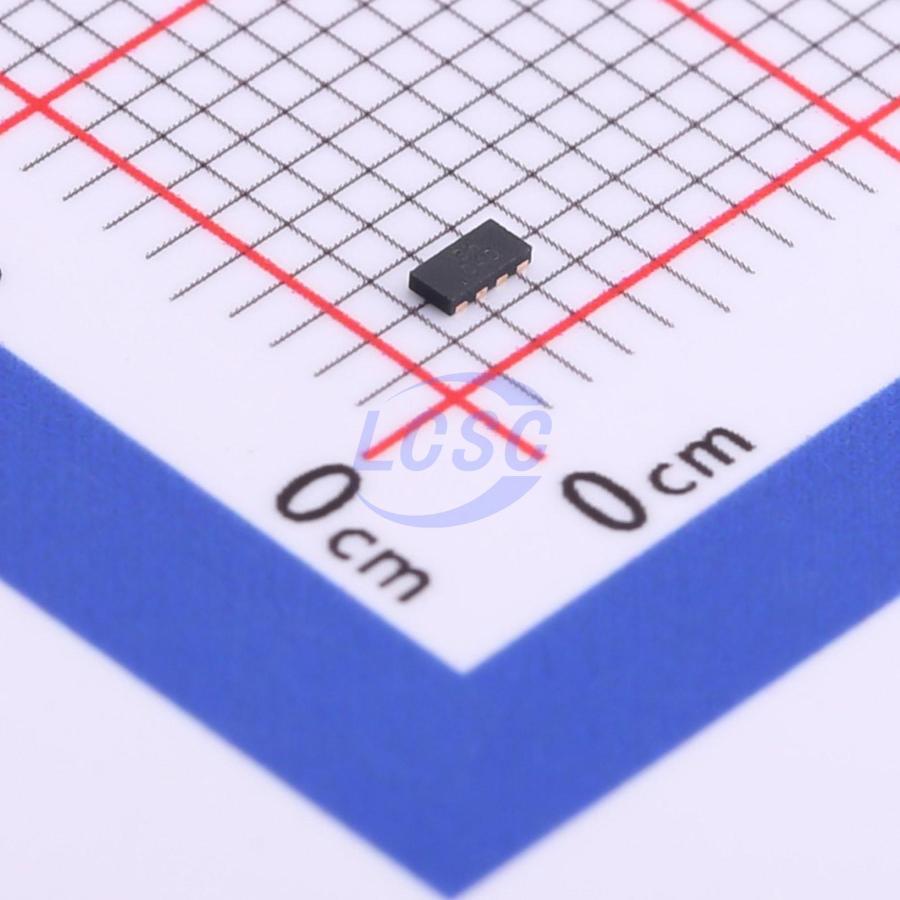

DIODES

74LVC2G32HD4-7

Schmitt trigger 1.65V~5.5V 4ns@5V,50pF 40uA DFN-8(1x2) Gates and Inverters RoHS

DFN-8(1x2)ROHS3 CompliantActive

DUAL 2-INPUT OR GATE

Manufacturer: DIODES
Manufacturer part #: 74LVC2G32HD4-7
Store part #: C526352
Package / case: DFN-8(1x2)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,380 in stock

#C526352

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.06	₹75.30
50+	₹13.12	₹656.00
150+	₹12.29	₹1,843.50
500+	₹11.26	₹5,630.00
2,500+	₹10.52	₹26,300.00
5,000+	₹10.24	₹51,200.00

Quantity (min 5, multiples of 5)

5 × ₹15.06

₹75.30

excl. GST

₹88.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

74LVC2G32HD4-7

₹75.30 for 5 + GST

Specifications

Input Type: Schmitt trigger
output type: Push-pull
Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Propagation Delay: 4ns@5V,50pF
Features: Local shutdown mode
Input Logic Level - Low: 700mV;800mV
Input Logic Level - High: 1.7V;2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V~1.53V;1.9V~2.13V;2.2V~2.5V;2.3V~2.6V;3.8V~4.1V
Quiescent Current(Iq): 40uA
Number of Channels: 2;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.023 g

Overview

The 74LVC2G32 is a dual, two input OR gate. Both gates have pushpull outputs designed for operation over a power supply range of 1.65V to 5.5V. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing damaging current backflow when the device is powered down. Each gate performs the positive Boolean function.

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
Wide Array of Products Such as: PCs, Networking, Notebooks, Netbooks, PDAs, Tablet Computers, E-readers, Computer Peripherals, Hard Drives, CD/DVD ROMs, TVs, DVDs, DVRs, Set Top Boxes, Cell Phones, Personal Navigation / GPS, MP3 Players, Cameras, Video Recorders

Key features

Wide Supply Voltage Range from 1.65 to 5.5V
±24mA Output Drive at 3.3V
CMOS Low Power Consumption
IOFF Supports Partial-Power-Down Mode Operation
Inputs accept up to 5.5V Schmitt Trigger Action at all inputs makes the circuit tolerant for slower input rise and fall times. The hysteresis is typically 100mV at VCC = 3.0V.
ESD Protection Exceeds JESD 22: 2000-V Human Body Model (A114); Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
