onsemiDatasheet (PDF)

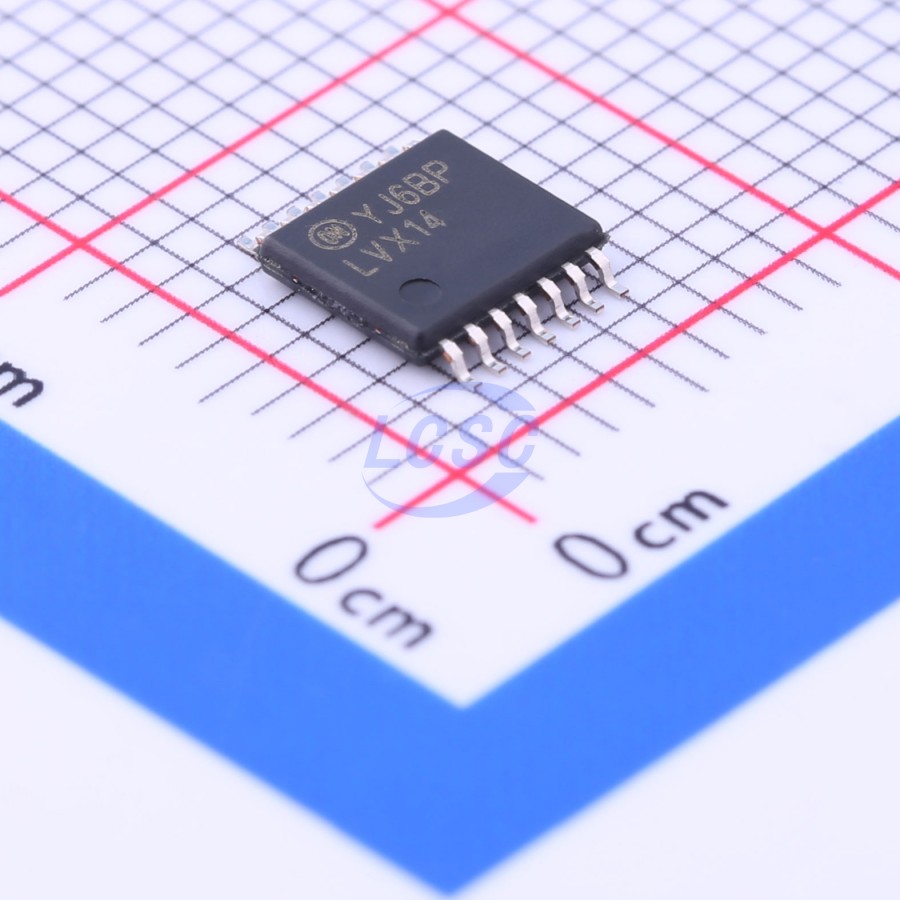

74LVX14MTCX
Schmitt trigger 2V~3.6V 14.1ns@3.3V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Low Voltage Hex Inverter with Schmitt Trigger Input
- Manufacturer
- onsemi
- Manufacturer part #
- 74LVX14MTCX
- Store part #
- C232810
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,355 in stock
#C232810
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.15 | ₹62.15 |
| 10+ | ₹49.33 | ₹493.30 |
| 30+ | ₹43.90 | ₹1,317.00 |
| 100+ | ₹37.16 | ₹3,716.00 |
| 500+ | ₹31.30 | ₹15,650.00 |
| 1,000+ | ₹29.34 | ₹29,340.00 |
1 × ₹62.15
₹62.15
excl. GST
₹73.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LVX14MTCX
₹62.15 for 1 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVX
- Voltage - Supply
- 2V~3.6V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 14.1ns@3.3V,50pF
- Features
- Noise suppression function
- Input Logic Level - High
- 2.2V
- Input Logic Level - Low
- 900mV
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 2.48V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.188 g
Overview
The LVX14 contains six inverter gates each with a Schmitt trigger input. They are capable of transforming slowly changing input signals into sharply defined, jitterfree output signals. In addition, they have a greater noise margin than conventional inverters. The LVX14 has hysteresis between the positive-going and negative-going input thresholds (typically 1.0V) which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems.
Key features
- Input voltage level translation from 5V to 3V
- Ideal for low power/low noise 3.3V applications
- Guaranteed simultaneous switching noise level and dynamic threshold performance
