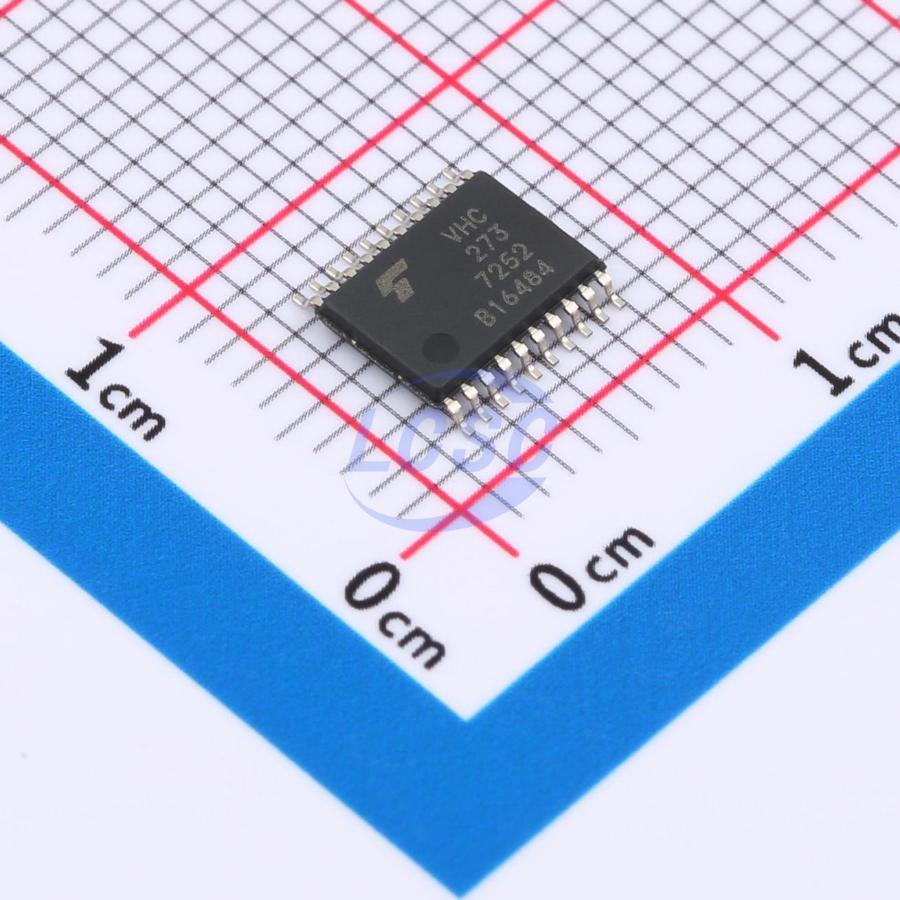

74VHC273FT

The 74VHC273FT is an advanced high speed CMOS OCTAL D-TYPE FLIP FLOP fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. Information signals applied to D inputs are transferred to the Q outputs on the positive going edge of the clock pulse. When the CLR input is held "L", the Q outputs are at a low logic level independent of the other inputs. An input protection circuit ensures that 0 to 5.5 V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5 V to 3V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.

Key features

• AEC-Q100 (Rev. H)
• Wide operating temperature range: T_opr = -40 to 125 °C
• High speed: f_MAX = 165 MHz (typ.) at V_CC = 5.0 V
• Low power dissipation: I_CC = 4.0 μA (max) at T_a = 25 °C
• High noise immunity: V_NIH = V_NIL = 28% V_CC (min)
• Power-down protection is provided on all inputs.
• Balanced propagation delays: tp_LH ≈ tp_HL
• Wide operating voltage range: V_CC(opr) = 2.0 V to 5.5 V
• Low noise: V_OLP = 0.8 V (max)
• Pin and function compatible with the 74 series (74AC/HC/AHC etc.) 273 type.
