TOSHIBADatasheet (PDF)

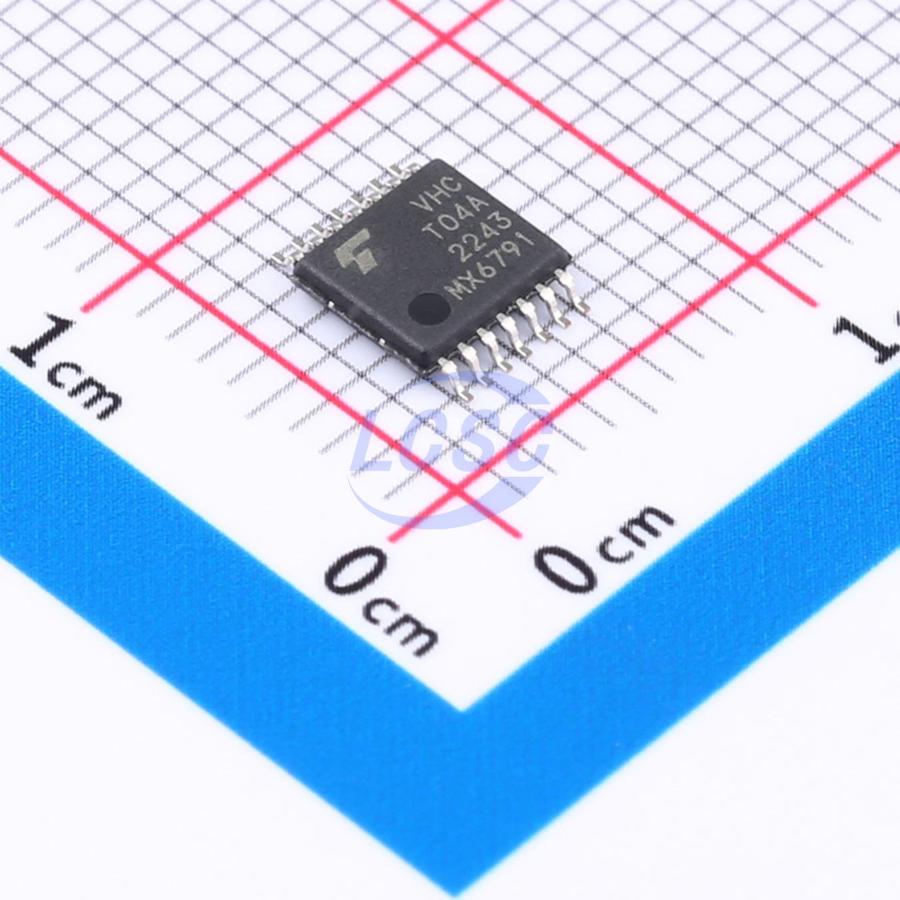

74VHCT04AFT
4.5V~5.5V 4.7ns@5V,15pF 2uA 6 TSSOP-14B Gates and Inverters RoHS
TSSOP-14BROHS3 CompliantSold out at source
CMOS Digital Integrated Circuits Silicon Monolithic Hex Inverter
- Manufacturer
- TOSHIBA
- Manufacturer part #
- 74VHCT04AFT
- Store part #
- C5381636
- Package / case
- TSSOP-14B
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,170 in stock
#C5381636
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.17 | ₹110.85 |
| 50+ | ₹19.34 | ₹967.00 |
| 150+ | ₹18.14 | ₹2,721.00 |
| 500+ | ₹16.63 | ₹8,315.00 |
| 2,500+ | ₹15.96 | ₹39,900.00 |
| 5,000+ | ₹15.56 | ₹77,800.00 |
5 × ₹22.17
₹110.85
excl. GST
₹130.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74VHCT04AFT
₹110.85 for 5 + GST
Specifications
- Logic Family
- 74VHCT
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 4.7ns@5V,15pF
- Output Logic Level - Low
- 100mV;360mV
- Features
- Power shutdown protection;Power-off protection function
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;3.94V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.122 g
Overview
The 74VHCT04AFT is an advanced high speed CMOS INVERTER fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The input voltage are compatible with TTL output voltage. This device may be used as a level converter for interfacing 3.3 V to 5 V system. Input protection and output circuit ensure that 0 to 5.5 V can be applied to the input and output (Note) pins without regard to the supply voltage. These structure prevents device destruction due to mismatched supply and input/output voltages such as battery back up, hot board insertion, etc.
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125 ℃
- High speed: tpd = 4.7 ns (typ.) at VCC = 5.0 V
- Low power dissipation: ICC = 2.0 μA (max) at Ta = 25 ℃
- Compatible with TTL inputs: VIL = 0.8 V (max); VIH = 2.0 V (min)
- Power down protection is provided on all inputs and outputs.
- Balanced propagation delays: tLH ≈ tHL
- Low noise: VOLP = 1.0 V (max)
- Pin and function compatible with the 74 series (AC/HC/AHC/LV etc.) 04 type.
