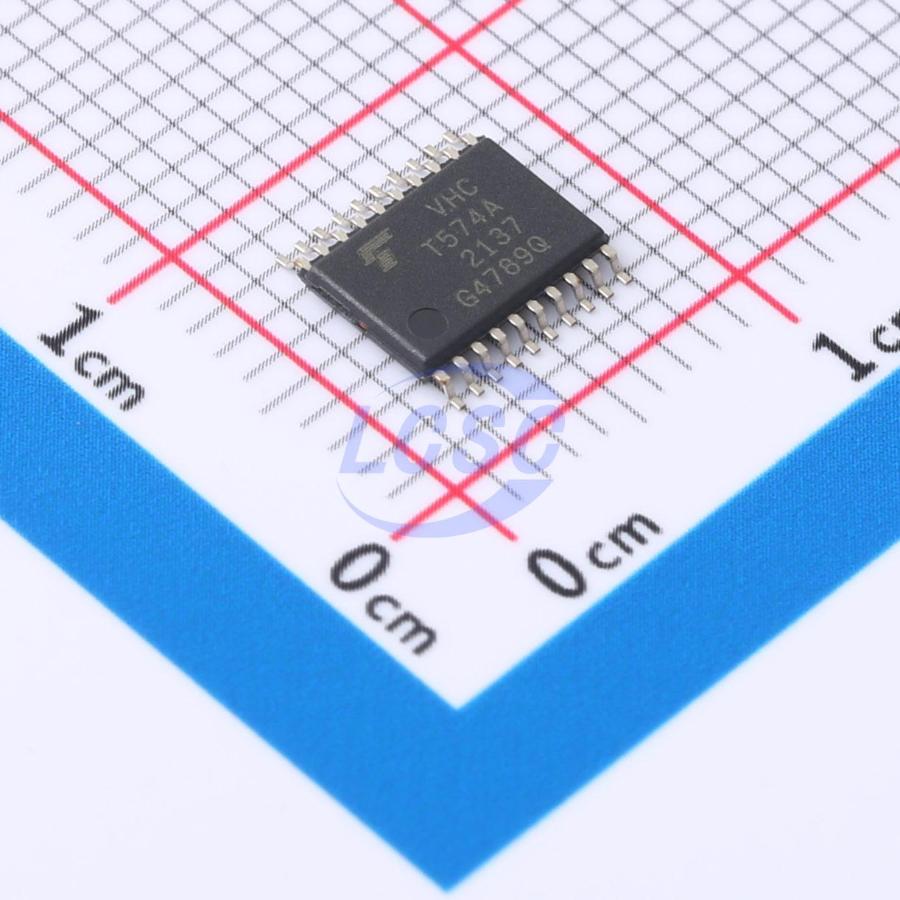

74VHCT574AFT(BE)

The 74VHCT574AFT is an advanced high speed CMOS OCTAL FLIP-FLOP with 3-STATE OUTPUT fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. This 8-bit D-type flip-flop is controlled by a clock input (CK) and an output enable input OE(overline). When the OE(overline) input is high, the eight outputs are in a high impedance state. The input voltage is compatible with TTL output voltage. This device may be used as a level converter for interfacing 3.3 V to 5 V Input protection and output circuit ensure that 0 to 5.5 V can be applied to the input and output (Note) pins without regard to the supply voltage. These structure prevents device destruction due to mismatched supply and input/output voltages such as battery back up, hot board insertion, etc.

Key features

• AEC-Q100 (Rev. H)
• Wide operating temperature range: T_opr = -40 to 125 ℃
• High speed: f_MAX = 140 MHz (typ.) at V_CC = 5.0 V
• Low power dissipation: I_CC = 4.0 μA (max) at T_a = 25 ℃
• Compatible with TTL inputs: V_IL = 0.8 V (max), V_IH = 2.0 V (min)
• Power-down protection is provided on all inputs and outputs.
• Balanced propagation delays: tp_LH ≈ tp_HL
• Low noise: V_OLP = 1.5 V (max)
• Pin and function compatible with the 74 series (74ACT/HCT/AHCT etc.) 574 type.
