UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,000 in stock
IDCHIPDatasheet (PDF)

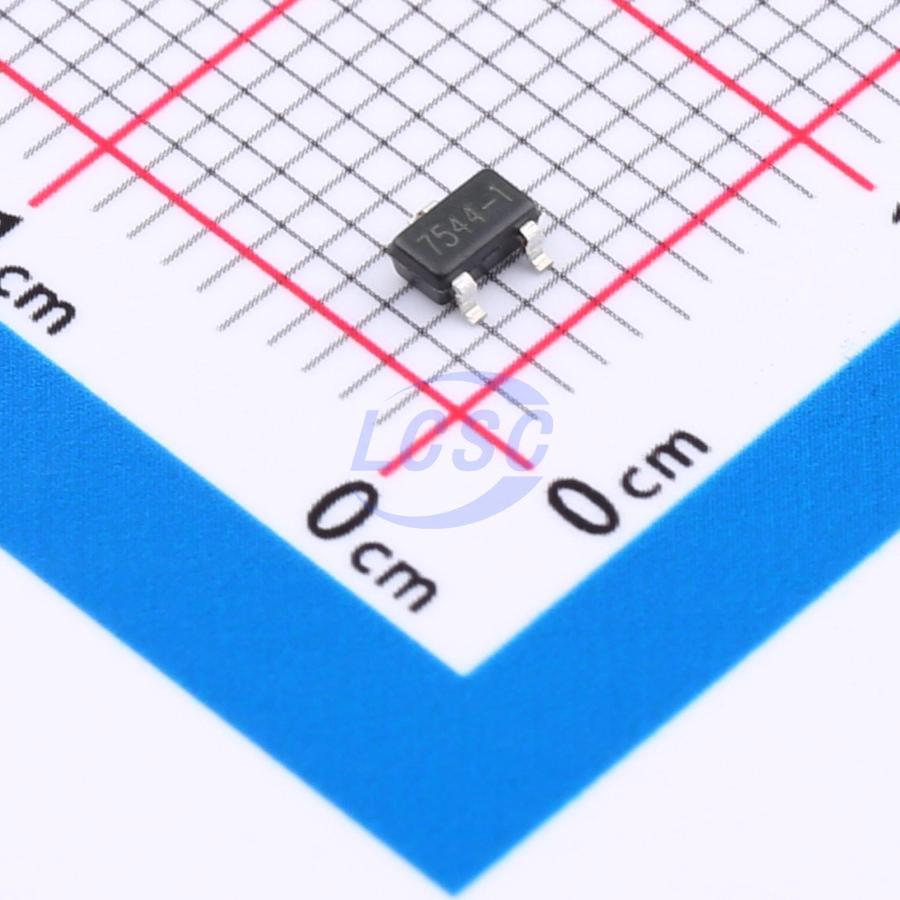

7544-1SOT23-3
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
100mA LOW POWER LDO
- Manufacturer
- IDCHIP
- Manufacturer part #
- 7544-1SOT23-3
- Store part #
- C42401002
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C42401002
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.57 | ₹55.70 |
| 100+ | ₹4.41 | ₹441.00 |
| 300+ | ₹3.82 | ₹1,146.00 |
| 3,000+ | ₹3.39 | ₹10,170.00 |
| 6,000+ | ₹3.04 | ₹18,240.00 |
| 9,000+ | ₹2.86 | ₹25,740.00 |
10 × ₹5.57
₹55.70
excl. GST
₹65.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
7544-1SOT23-3
₹55.70 for 10 + GST
Specifications
- Output Voltage
- 4.4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 36V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
75xx-1 is a low dropout linear regulator using CMOS technology. It provides a maximum output current of 100mA and supports an input voltage of up to 36V. Several fixed output voltage options are available, ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 36V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 7144-1SOT23-3#C42400996IDCHIP · SOT-23-3 | IDCHIP | SOT-23-3 | 2,990 | ₹5.57 · 2,990 in stock | View |
| 7344-1SOT23-3#C42401009IDCHIP · SOT-23-3 | IDCHIP | SOT-23-3 | On request | ₹10.68 · 0 in stock | View | |
