BLUE ROCKET

7805

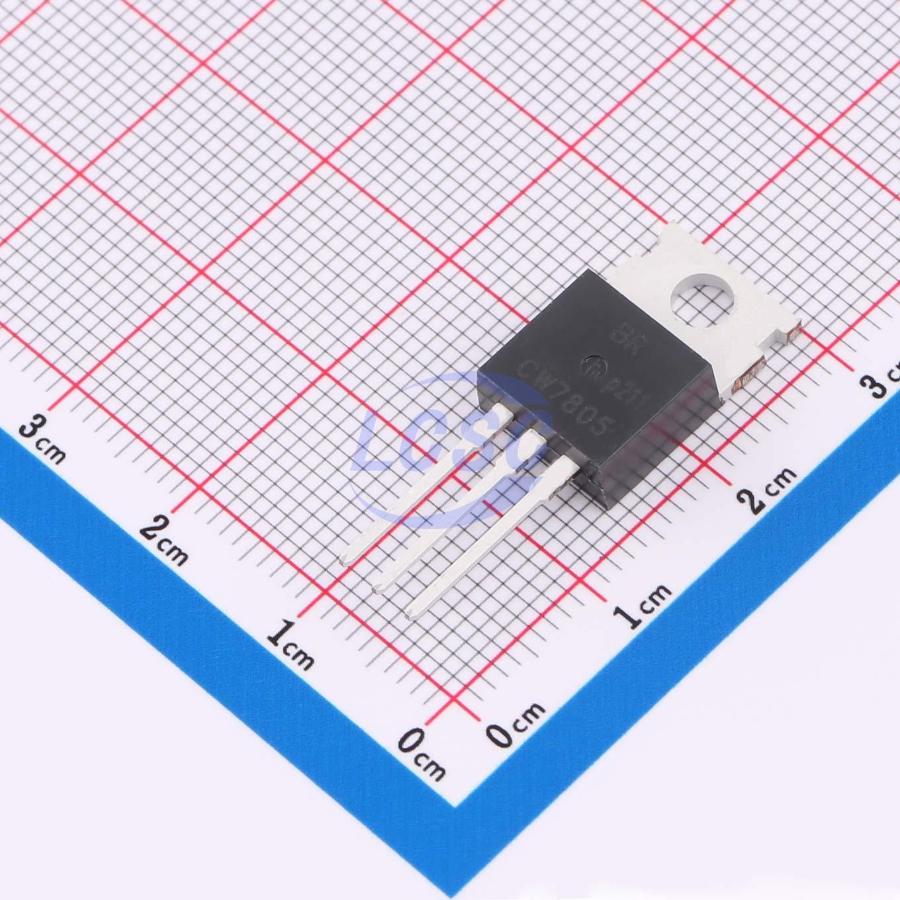

Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-220

TO-220RoHSActive

IC REG LINEAR 4.75V~5.25V 1.5A TO-220

Manufacturer: BLUE ROCKET
Manufacturer part #: 7805
Store part #: C305416
Package / case: TO-220
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,200 in stock

#C305416

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
5+	₹43.87	₹219.35
50+	₹33.87	₹1,693.50
150+	₹29.98	₹4,497.00
500+	₹25.12	₹12,560.00
2,000+	₹22.95	₹45,900.00
5,000+	₹21.66	₹1,08,300.00

Quantity (min 5, multiples of 5)

5 × ₹43.87

₹219.35

excl. GST

₹258.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

7805

₹219.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 4.75V~5.25V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃@(Tj)
Supply Current (Iq): 8mA
Output Configuration: Positive
Operating Voltage: 20V
Output Current: 1.5A
Features: Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.745 g

Overview

TO-220 plastic package voltage regulator. Voltage Regulator in a TO-220 Plastic Package.

Applications

Voltage Regulator.
Voltage Regulator.

Key features

3-terminal voltage regulator, output current up to 1.5A, with internal thermal overload protection and short-circuit current limiting.
3-Terminal regulators, output current up to 1.5A, internal thermal overload protection and short-circuit limiting.
