YFWDatasheet (PDF)

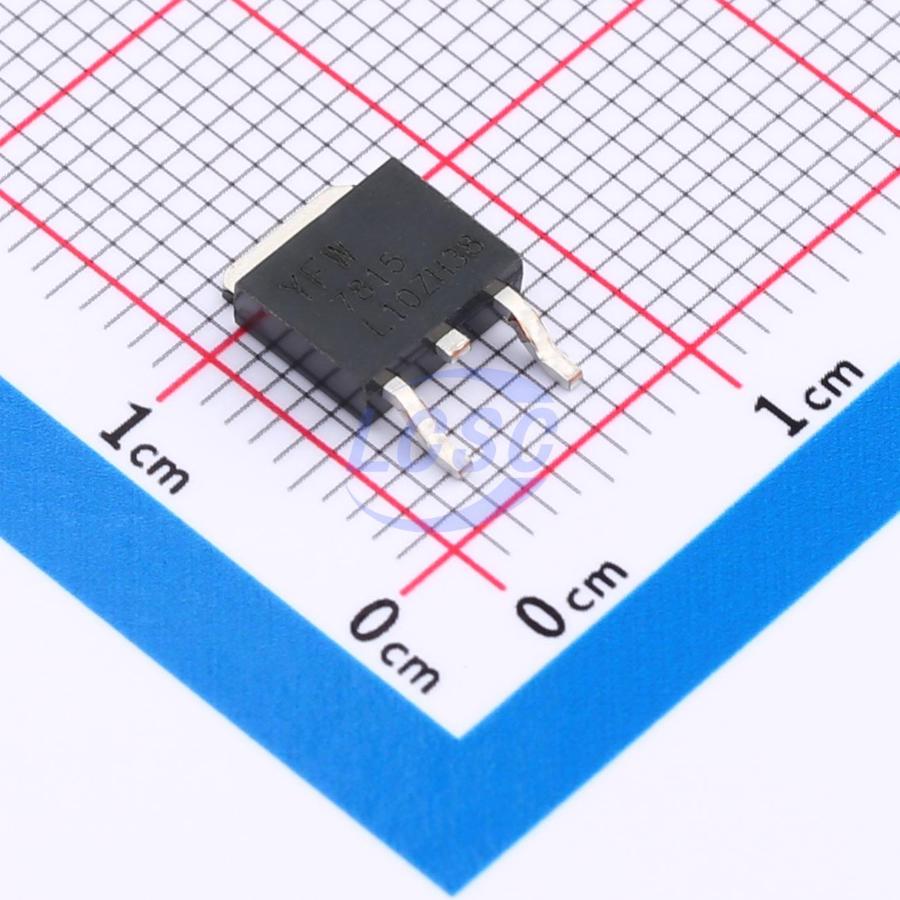

7815
15V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252ROHS CompliantActive
3-Terminal 1.5A Positive Voltage Regulator
- Manufacturer
- YFW
- Manufacturer part #
- 7815
- Store part #
- C19273193
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,395 in stock
#C19273193
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.64 | ₹188.20 |
| 50+ | ₹29.40 | ₹1,470.00 |
| 150+ | ₹25.86 | ₹3,879.00 |
| 500+ | ₹21.46 | ₹10,730.00 |
| 2,500+ | ₹20.81 | ₹52,025.00 |
| 5,000+ | ₹19.63 | ₹98,150.00 |
5 × ₹37.64
₹188.20
excl. GST
₹222.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
7815
₹188.20 for 5 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.457 g
Overview
The 78XX series of three-terminal positive regulators are available in the TO-220A /TO-252 package with several fixed output voltages making it useful in a wide range of applications.
Key features
- Output Current up to 1.5A
- Output Voltages of 5,6,8,10,12,15V
- Thermal Overload Protection
- Short Circuit Protection
- Output Transistor Safe Operating area (SOA) Protection
