UTCDatasheet (PDF)

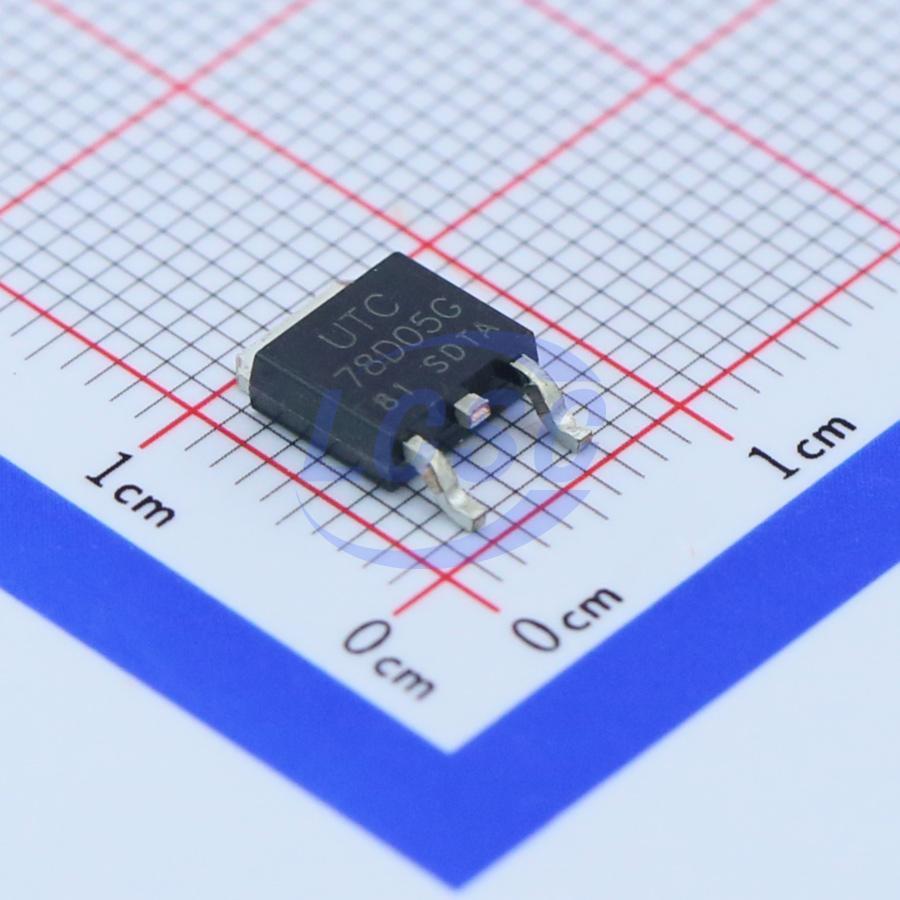

78D05G-TN3-R
5V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2(DPAK)ROHS CompliantActive
3-TERMINAL 0.5A POSITIVE VOLTAGE REGULATOR
- Manufacturer
- UTC
- Manufacturer part #
- 78D05G-TN3-R
- Store part #
- C99962
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,450 in stock
#C99962
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.59 | ₹117.95 |
| 50+ | ₹18.65 | ₹932.50 |
| 150+ | ₹16.54 | ₹2,481.00 |
| 500+ | ₹13.89 | ₹6,945.00 |
| 2,500+ | ₹12.71 | ₹31,775.00 |
| 5,000+ | ₹12.01 | ₹60,050.00 |
5 × ₹23.59
₹117.95
excl. GST
₹139.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
78D05G-TN3-R
₹117.95 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+150℃@(Tj)
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 20V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.504 g
Overview
The UTC 78DXX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 0.5 A.
Key features
- Output Current Up To 0.5 A
- Fixed Output Voltage Of 5V, 6V, 7V, 8V, 9V, 12V, 15V, 18V, 20V and 24V Available
- Thermal Overload Shutdown Protection
- Short Circuit Current Limiting
- Output Transistor SOA Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78D05L-TN3-R#C71134UTC · TO-252-2(DPAK) | UTC | TO-252-2(DPAK) | 2,443 | ₹23.22 · 2,443 in stock | View |
 | 78D05LL-TN3-R#C75494UTC · TO-252-2(DPAK) | UTC | TO-252-2(DPAK) | 25 | ₹20.11 · 25 in stock | View |
 | L7805MDTR(XBLW)#C42376985XBLW · TO-252-2L | XBLW | TO-252-2L | 29,915 | ₹15.62 · 29,915 in stock | View |
 | 78M05#C5290158TWGMC · TO-252 | TWGMC | TO-252 | 3,895 | ₹11.17 · 3,895 in stock | View |
 | 78M05#C347278UMW · TO-252 | UMW | TO-252 | 3,05,480 | ₹14.05 · 3,05,480 in stock | View |
