UTCDatasheet (PDF)

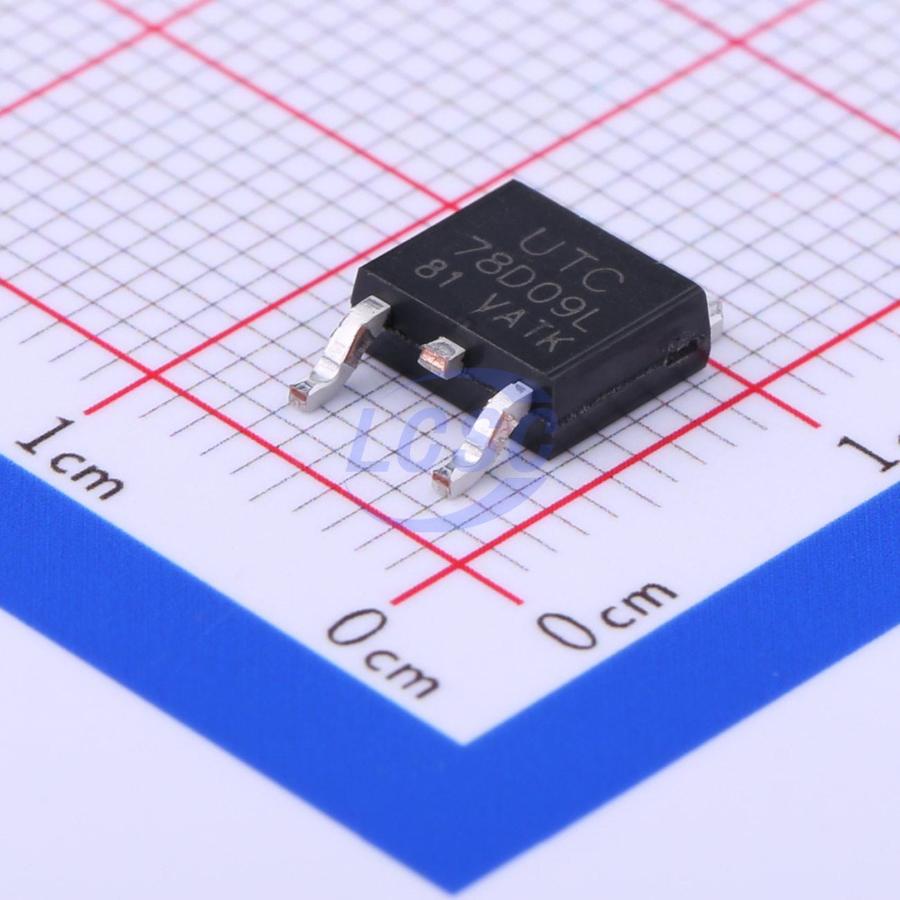

78D09L-TN3-R
9V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2(DPAK)ROHS CompliantActive
3-TERMINAL 0.5A POSITIVE VOLTAGE REGULATOR
- Manufacturer
- UTC
- Manufacturer part #
- 78D09L-TN3-R
- Store part #
- C71135
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,335 in stock
#C71135
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.81 | ₹114.05 |
| 50+ | ₹17.66 | ₹883.00 |
| 150+ | ₹15.47 | ₹2,320.50 |
| 500+ | ₹12.71 | ₹6,355.00 |
| 2,500+ | ₹11.48 | ₹28,700.00 |
| 5,000+ | ₹10.74 | ₹53,700.00 |
5 × ₹22.81
₹114.05
excl. GST
₹134.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
78D09L-TN3-R
₹114.05 for 5 + GST
Specifications
- Output Voltage
- 9V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+150℃
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 35V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.575 g
Overview
The UTC 78DXX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 0.5 A.
Key features
- Output Current Up To 0.5 A
- Fixed Output Voltage Of 5V, 6V, 7V, 8V, 9V, 12V, 15V, 18V, 20V and 24V Available
- Thermal Overload Shutdown Protection
- Short Circuit Current Limiting
- Output Transistor SOA Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78D09LL-TN3-R#C380214UTC · TO-252 | UTC | TO-252 | 665 | ₹26.17 · 665 in stock | View |
 | 78M09#C347281UMW · TO-252 | UMW | TO-252 | 21,820 | ₹15.61 · 21,820 in stock | View |
 | 78M09-MS#C5174618MSKSEMI · TO-252 | MSKSEMI | TO-252 | 495 | ₹14.43 · 495 in stock | View |
 | 78M09#C19626459YFW · TO-252 | YFW | TO-252 | 2,495 | ₹20.86 · 2,495 in stock | View |
 | SSP78M09#C49331827Siproin · TO-252 | Siproin | TO-252 | 1,770 | ₹12.42 · 1,770 in stock | View |
