UTCDatasheet (PDF)

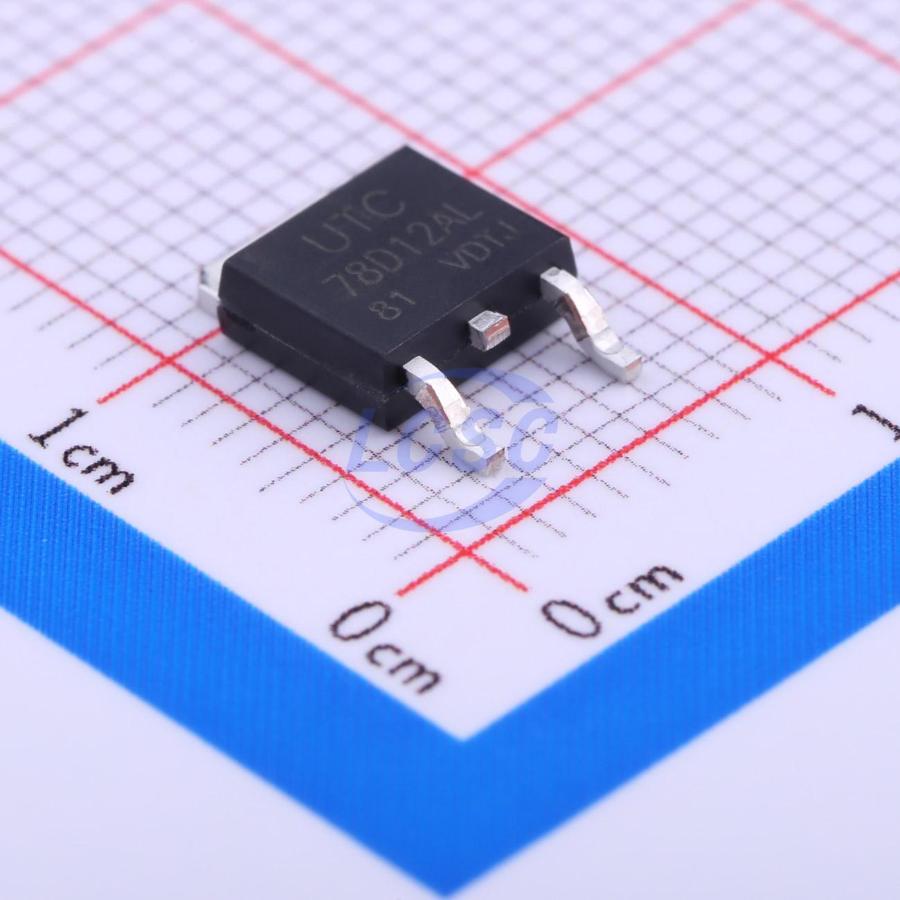

78D12AL-TN3-R
12V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2(DPAK)ROHS CompliantActive
3-Terminals 1A Positive Voltage Regulator
- Manufacturer
- UTC
- Manufacturer part #
- 78D12AL-TN3-R
- Store part #
- C73290
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,053 in stock
#C73290
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 3+ | ₹22.49 | ₹67.47 |
| 30+ | ₹17.83 | ₹534.90 |
| 90+ | ₹15.84 | ₹1,425.60 |
| 300+ | ₹13.34 | ₹4,002.00 |
| 1,500+ | ₹12.01 | ₹18,015.00 |
| 3,000+ | ₹11.34 | ₹34,020.00 |
3 × ₹22.49
₹67.47
excl. GST
₹79.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
78D12AL-TN3-R
₹67.47 for 3 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 3 (multiples of 3)
- Unit weight
- 0.504 g
Overview
The UTC 78DXXA family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 1 A.
Key features
- Peak output current up to 1A.
- Fixed output voltage of 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V and 24V available.
- Thermal overload shutdown protection.
- Short circuit current limiting.
- Output transistor SOA protection.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JTD78M12#C54928346JTD · TO-252-3 | JTD | TO-252-3 | 9,690 | ₹12.66 · 9,690 in stock | View |
 | 78M12#C347282UMW · TO-252 | UMW | TO-252 | 1,02,340 | ₹14.34 · 1,02,340 in stock | View |
 | 78D12L(UMW)#C50132575UMW · TO-252 | UMW | TO-252 | 1,365 | ₹14.46 · 1,365 in stock | View |
 | MC7812BDTRKG#C126398onsemi · TO-252-2(DPAK) | onsemi | TO-252-2(DPAK) | 29,900 | ₹29.65 · 29,900 in stock | View |
 | PJ7812TE#C469395PJSEMI · TO-252 | PJSEMI | TO-252 | 1,640 | ₹23.89 · 1,640 in stock | View |
