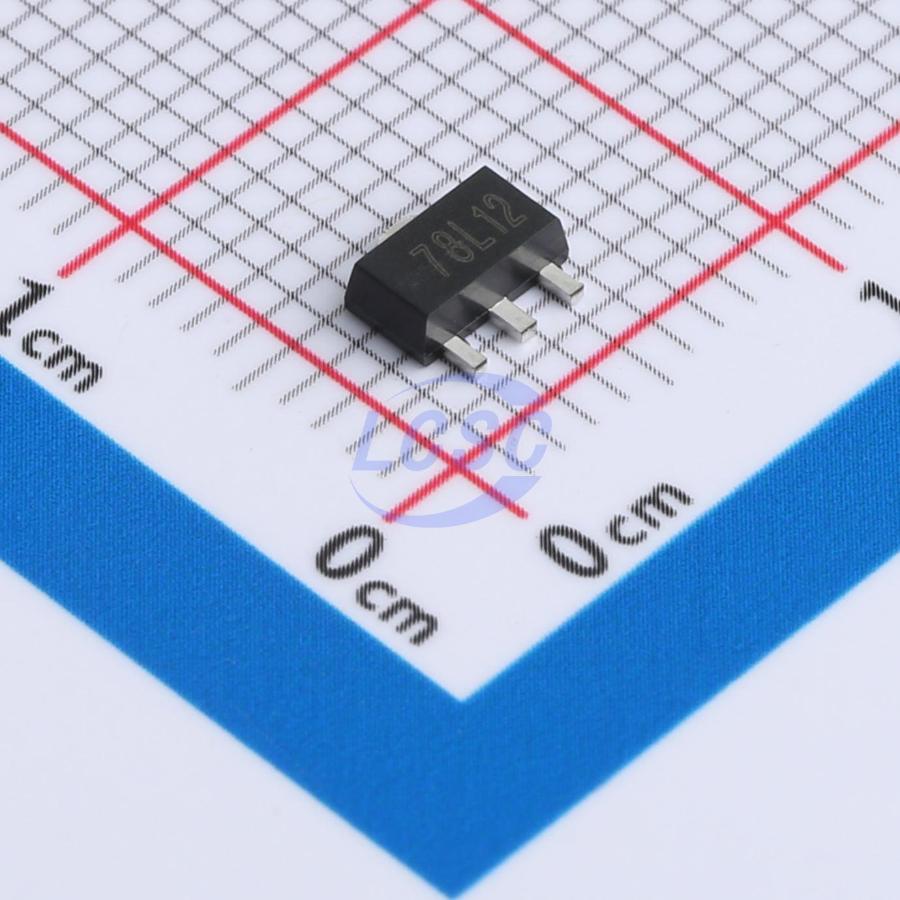

78L12
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-89
SOT-89RoHSActive
LDO High-Voltage Regulator
- Manufacturer
- GR
- Manufacturer part #
- 78L12
- Store part #
- C18164480
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
940 in stock
#C18164480
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.29 | ₹105.80 |
| 200+ | ₹4.23 | ₹846.00 |
| 1,000+ | ₹3.37 | ₹3,370.00 |
| 2,000+ | ₹3.02 | ₹6,040.00 |
| 10,000+ | ₹2.71 | ₹27,100.00 |
| 20,000+ | ₹2.55 | ₹51,000.00 |
20 × ₹5.29
₹105.80
excl. GST
₹124.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
78L12
₹105.80 for 20 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 150mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.1 g
Overview
The 78LXX series is a high-voltage input regulator fabricated using bipolar process technology, supporting a maximum input voltage of 36V and output voltage range of 5V~15V. It features internal over-temperature, overload, and short-circuit protection, and is widely used across various consumer electronics applications.
Applications
- Battery charger devices
- Various communication equipment
- Electronic control applications
- Audio/video devices
- Security & surveillance equipment
- LED lighting
Key features
- High input voltage: up to 36V
- Internal thermal overload protection
- Internal short-circuit current limiting
- No external components required
- Output current up to 150mA
- Package: TO-92, SOT89-3
