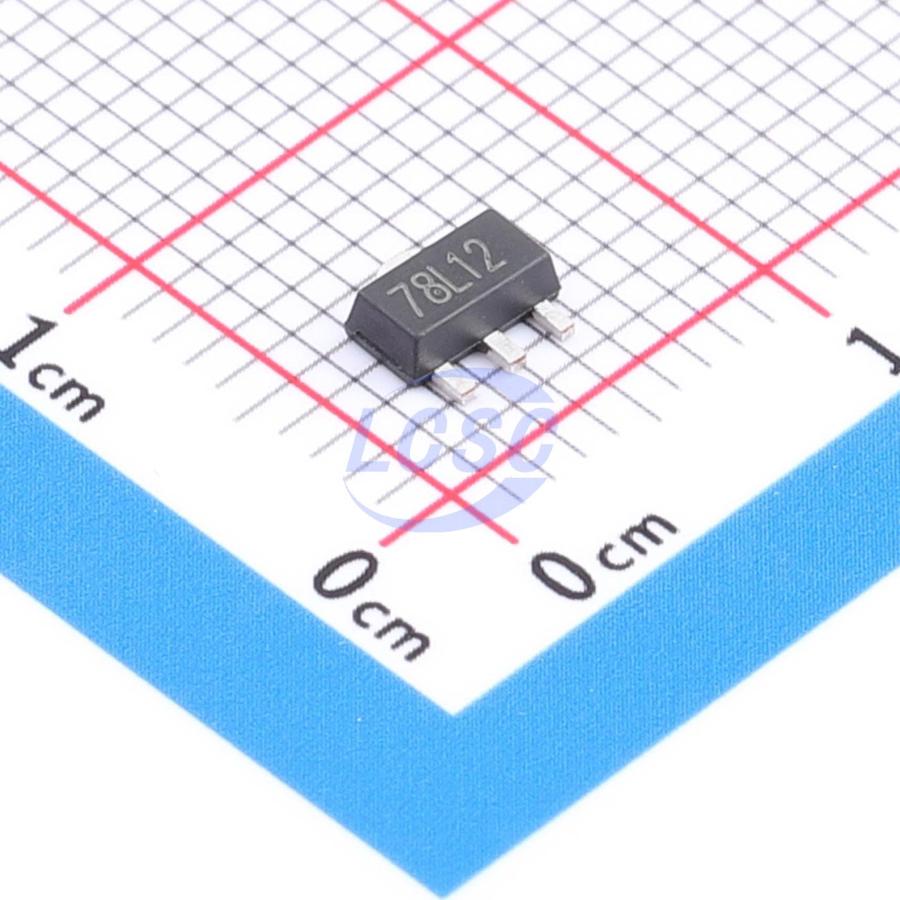

78L12-SOT-89
12V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
- Manufacturer
- DDF
- Manufacturer part #
- 78L12-SOT-89
- Store part #
- C50229749
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,860 in stock
#C50229749
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.04 | ₹70.40 |
| 100+ | ₹5.58 | ₹558.00 |
| 300+ | ₹4.86 | ₹1,458.00 |
| 1,000+ | ₹4.31 | ₹4,310.00 |
| 5,000+ | ₹3.86 | ₹19,300.00 |
| 10,000+ | ₹3.65 | ₹36,500.00 |
10 × ₹7.04
₹70.40
excl. GST
₹83.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
78L12-SOT-89
₹70.40 for 10 + GST
Specifications
- Output Voltage
- 12V
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 6.5mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 27V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
This series of fixed-voltage monolithic integrated circuit voltage regulators is designed for a wide range of applications. These applications include on-board regulation for noise elimination and addressing distribution issues associated with single-point regulation. In addition, they can be used with power-passing elements to form high-current voltage regulators. Each regulator can deliver up to 150mA of output current. Internal current limiting and thermal shutdown features make them virtually immune to overload. When used as a replacement for zener diode-resistor combinations, effective improvement in output impedance and lower quiescent current can be achieved.
Key features
- Three-terminal positive voltage regulator
- Output current up to 150 mA
- Internal thermal overload protection
- Internal short-circuit current limiting
- No external components required
- 12V output voltage
- Available in plastic TO-92, SOT-89, and SOT-23 packages
