UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,000 in stock
YONGYUTAIDatasheet (PDF)

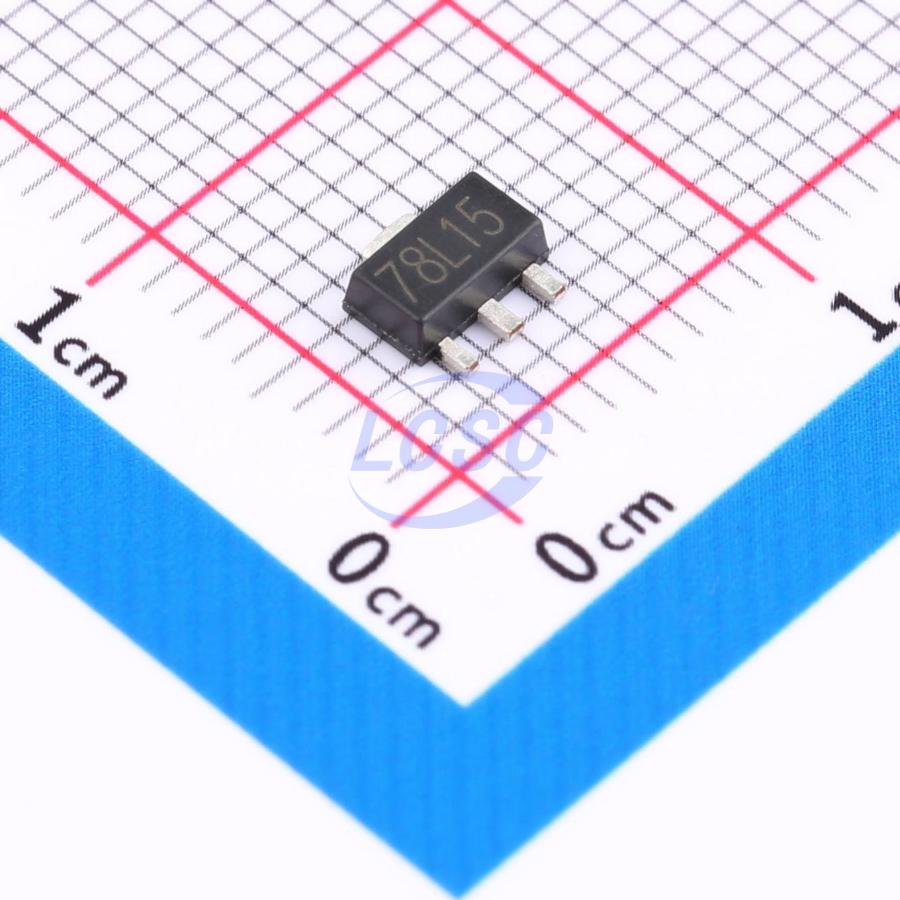

78L15
15V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATORS
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- 78L15
- Store part #
- C2891833
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C2891833
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.06 | ₹70.60 |
| 100+ | ₹5.72 | ₹572.00 |
| 300+ | ₹5.05 | ₹1,515.00 |
| 1,000+ | ₹4.21 | ₹4,210.00 |
| 5,000+ | ₹3.80 | ₹19,000.00 |
| 10,000+ | ₹3.60 | ₹36,000.00 |
10 × ₹7.06
₹70.60
excl. GST
₹83.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
78L15
₹70.60 for 10 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+120℃@(Tj)
- Supply Current (Iq)
- 2.2mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.157 g
Overview
The 78LXX series of fixed voltage monolithic integrated circuit voltage regulators are suitable for applications that required supply up to 100mA.
Key features
- Maximum output current of 100mA
- Output voltage of 5V, 6V, 8V, 9V, 10V, 12V, 15V and 24V
- Thermal overload protection
- Short circuit current limiting
