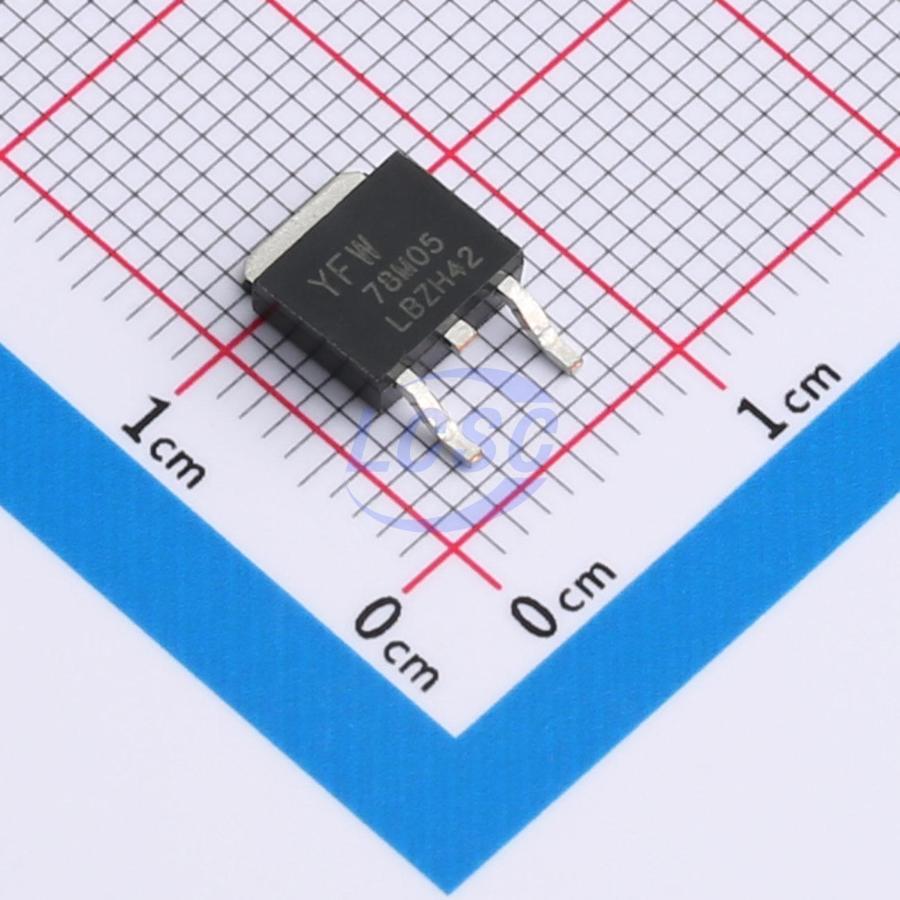

YFW

78M05

5V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-252ROHS CompliantActive

3-Terminal 1A Positive Voltage Regulator

Manufacturer: YFW
Manufacturer part #: 78M05
Store part #: C19626649
Package / case: TO-252
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,500 in stock

#C19626649

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹20.86	₹104.30
50+	₹16.39	₹819.50
150+	₹14.46	₹2,169.00
500+	₹12.07	₹6,035.00
2,500+	₹11.01	₹27,525.00
5,000+	₹10.36	₹51,800.00

Quantity (min 5, multiples of 5)

5 × ₹20.86

₹104.30

excl. GST

₹123.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

78M05

₹104.30 for 5 + GST

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃
Supply Current (Iq): 8mA
Output Configuration: Positive
Operating Voltage: 20V
Output Current: 1A
Features: Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.442 g

Overview

The 78MXX series of three-terminal positive regulators are available in the TO-220C/TO-252 package with several fixed output voltages making it useful in a wide range of applications.

Key features

Output Current up to 1A
Output Voltages of 5,6,8,10,12,15,18,20,24V
Thermal Overload Protection
Short Circuit Protection
Output Transistor Safe Operating area (SOA)Protection

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	78D05#C5444239YFW · TO-252	YFW	TO-252	2,500	₹21.68 · 2,500 in stock	View
