GUOXIN JIAPIN SEMICONDUCTORDatasheet (PDF)

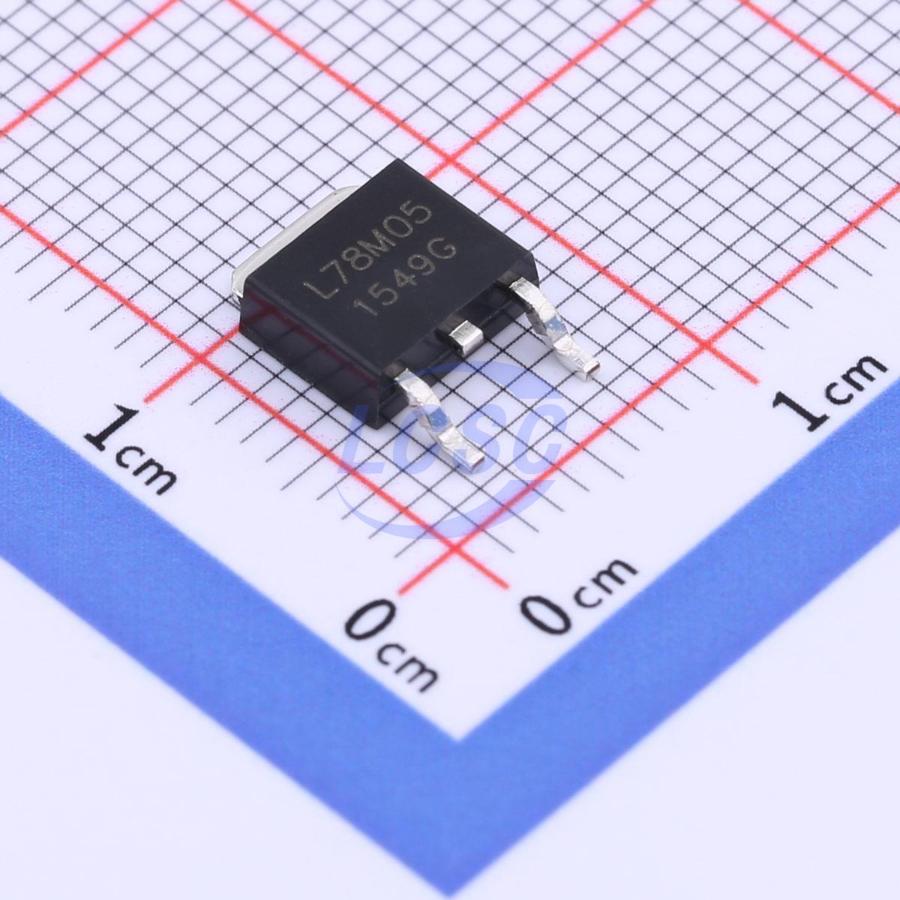

78M05
5V Positive Fixed TO-252-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252-2RoHSActive
500mA 3-TERMINAL POSITIVE LINEAR REGULATOR
- Manufacturer
- GUOXIN JIAPIN SEMICONDUCTOR
- Manufacturer part #
- 78M05
- Store part #
- C2992579
- Package / case
- TO-252-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,545 in stock
#C2992579
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.58 | ₹62.90 |
| 50+ | ₹10.29 | ₹514.50 |
| 150+ | ₹9.14 | ₹1,371.00 |
| 500+ | ₹8.28 | ₹4,140.00 |
| 2,500+ | ₹5.97 | ₹14,925.00 |
| 5,000+ | ₹5.62 | ₹28,100.00 |
5 × ₹12.58
₹62.90
excl. GST
₹74.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
78M05
₹62.90 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 500mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The 78M00 series are monolithic integrated circuits designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation. This series of regulators are complete with internal current limiting, thermal shutdown protection, and safearea compensation which make them virtually immune from output overload. If adequate heat sinking are provided, these regulators can deliver output currents up to 0.5A. The 78M00 series are available in two standard plastic packages: TO-220-3 and TO-252-2 (1).
Applications
- Consumer Electronics
- Microprocessor Power Supply
- Mother Board I/O Power Supply
Key features
- Output Current up to 0.5A
- Fixed Output Voltages of 5V, 6V, 8V, 9V and 12V
- Output Voltage Tolerances of ±5% over the Full Temperature Range
- Internal Short Circuit Current-limiting
- Internal Thermal Overload Protection
